SMTP Connector

The SMTP Connector allows you to transfer SMTP data unilaterally across NetWall products. There is a built in SMTP server in MetaDefender Optical Diode BLUE that will receive mail from SMTP clients in the BLUE network. SMTP traffic will be transferred from MetaDefender Optical Diode BLUE to MetaDefender Optical Diode RED, where we will configure a built in SMTP client that will send the traffic to a SMTP server in RED network.

MetaDefender Optical Diode BLUE

To configure SMTP server in MetaDefender Optical Diode BLUE, click on SMTP option in the menu, click on Edit button and fill in the fields:

• Connection Security, you can choose the security level for the communications between clients and server in BLUE:

  • None: No security added.
  • STARTTLS: STARTTLS security, a new field will appear so you can add the certificate.
  • SSL/TLS: SSL/TLS security, a new field will appear so you can add the certificate.

• Port: Port is automatically populated depending on the Security you have selected. You can change the selection if you want to operate in a non-default port.

• Certificate: If you select STARTTLS or SSL/TLS in Connection Security, you need to include a certificate. Available certificates will be listed in the dropdown list. You can add new certificate or import them into MetaDefender Optical Diode in Advanced > Encryption > SSL/TLS credentials. Check auto$ for more details.

• Enabled: Tick this checkbox to enable SMTP Transfer

MetaDefender Optical Diode RED

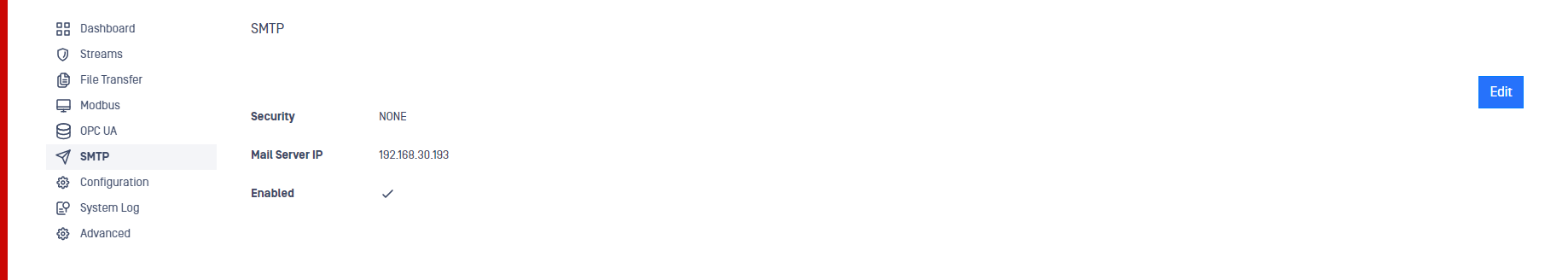

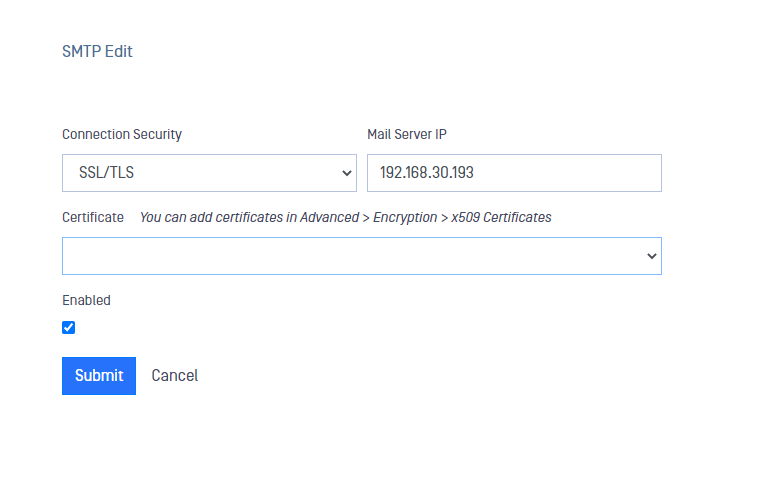

To configure SMTP server in MetaDefender Optical Diode RED, click on SMTP option in the menu, click on Edit button and fill in the fields:

• Connection Security, you can choose the security level for the communications between MetaDefender Optical Diode RED SMTP client and the server:

  • None: No security added.
  • STARTTLS: STARTTLS security.
  • SSL/TLS: SSL/TLS security, a new field will appear so you can add the certificate.

• Mail Server IP: IP for the mail server configured in RED side where MetaDefender Optical Diode will transfer the SMTP traffic comming from BLUE.

• Certificate: If you select SSL/TLS in Connection Security, you need to include a certificate. Available certificates will be listed in the dropdown list. You can add new certificate or import them into MetaDefender Optical Diode in Advanced > Encryption > x509 Certificates. Check auto$ for more details.

• Enabled: Tick this checkbox to enable SMTP Transfer
