Port Scan Detect

The Port Scan Detect feature protects against malicious port scan detection attacks. IP addresses that conduct overt scans (FIN/XMAS/NULL scans) are blocked immediately. Malicious activity can be configured for obscure scans. These can consist of a source IP scanning anomalous number of ports or the scanning of one specific port an irregular number of times. Users can manually block IP addresses by adding them to a blocklist or unblock them by adding them to a allowlist. IPs that have been blocked past a specific amount of time can be unblocked via a clean-up process.

Configuration

Port Scan uses thresholds and values to determine when to react to malicious activity. The thresholds are integer count values, time in seconds, or specific ports. Thresholds surpassed by any given host are treated as malicious activity.

Use the following procedure to change the thresholds:

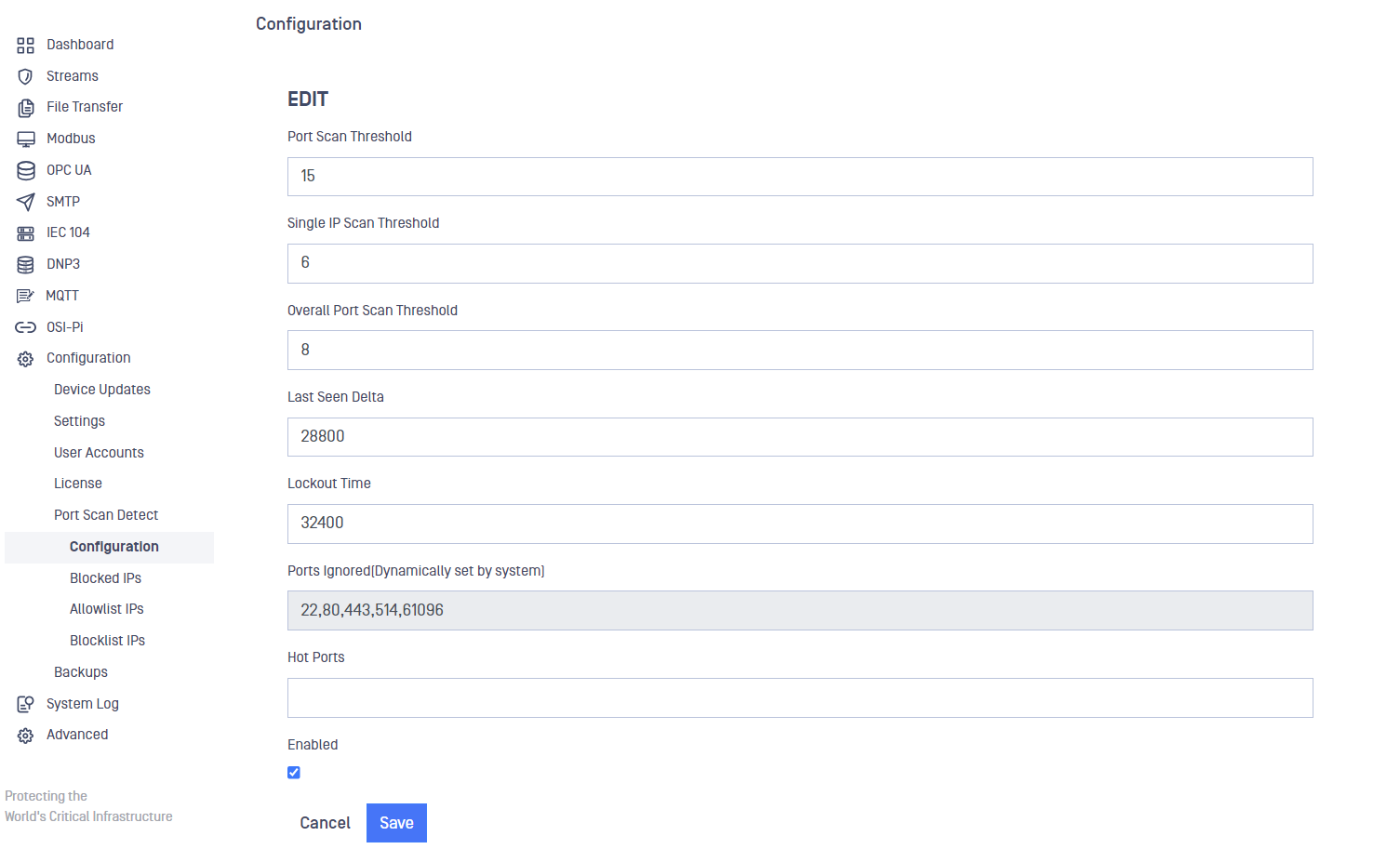

1. Open the Configuration menu, then select Port Scan Detect > Configuration. The Configuration pane displays.

Edit the following values as necessary:

• Port Scan Threshold: Threshold count of hits per unique port during analysis of host activity.
• Single IP Scan Threshold: Threshold count of ports scanned during analysis of host activity.
• Overall Port Scan Threshold: Threshold count of collective activity during analysis of host activity. Collective activity is based on combinations of actions, for example if one host hits port 23 four times and ports 80,443,8080,9000,9090 each once.
• Last Seen Delta (Integer Seconds): Port Scan Detection processes will block hosts that have last been seen within (less than) this value.
• Lockout Time (Integer Seconds): If a host has been blocked for a period longer than this value, it will be unblocked.
• Ports to Ignore: Comma delimited string of ports to ignore while processing live network traffic. A range of ports is supported if the format is properly used (x-y). Example (note no white spaces when specifying a range): ports to ignore:22,443,80-90,8080,8443-8448,502.
• Hot Ports: Comma delimited string of ports to immediately create a block action (of the relevant src ip) upon encountering.
• Enabled: Click to enable/disable the scans.

Unblock IPs

The Blocked IP Management table lists IP addresses that are blocked by Port Scan Detect. You can unblock these addresses manually.

1. Open the Configuration menu and select Port Scan Detect > Blocked IPs. The Blocked IP Management pane displays.
2. Click in the box to select the IPs that you will unblock.
3. Open the Action menu and click Unblock Selected.
4. Click Submit to confirm your action. A green banner indicates success.

Allowlist IPs

The allowlist contains recognized IP addresses that are considered privileged by the organization. Activity from these IP addresses is not considered malicious.

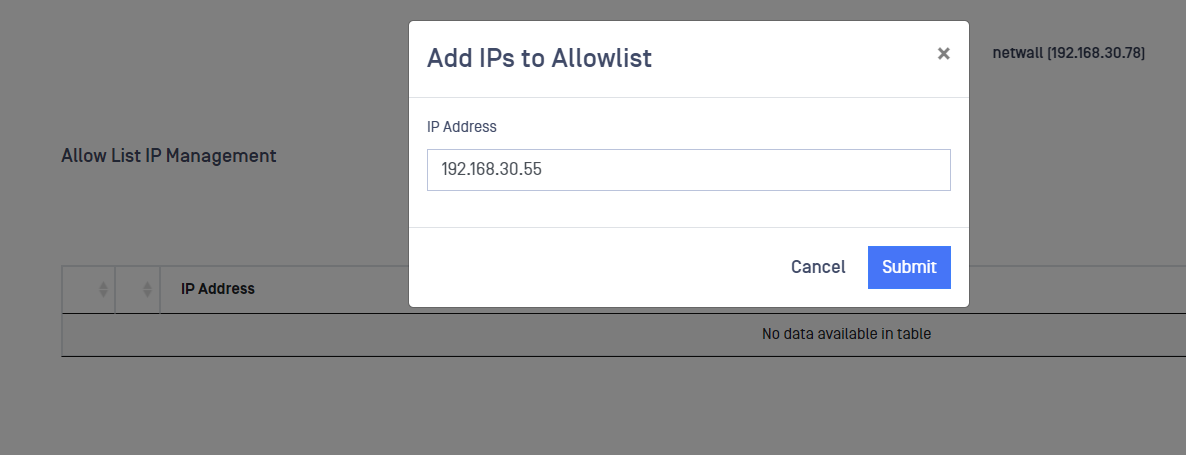

Add an IP to Allowlist

1. Open the Configuration menu and select Port Scan Detect > Allowlist IPs. The Allowlist IP Management pane displays.
2. Open the Action menu and click Add Custom IPs. A detail window displays.
3. Enter the IP address in the box.
4. Click the Submit button.

Delete an IP from Allowlist

1. Open the Configuration menu and select Port Scan Detect > Allowlist IPs. The Allowlist IP Management pane displays.
2. Select an IP you want to delete.
3. Open the Action menu and click Delete Selected.
4. Click Submit to confirm your decision.

Blocklist IPs

The blocklist contains IP addresses that are blocked or denied during monitoring. Activity from these IP addresses is considered malicious.

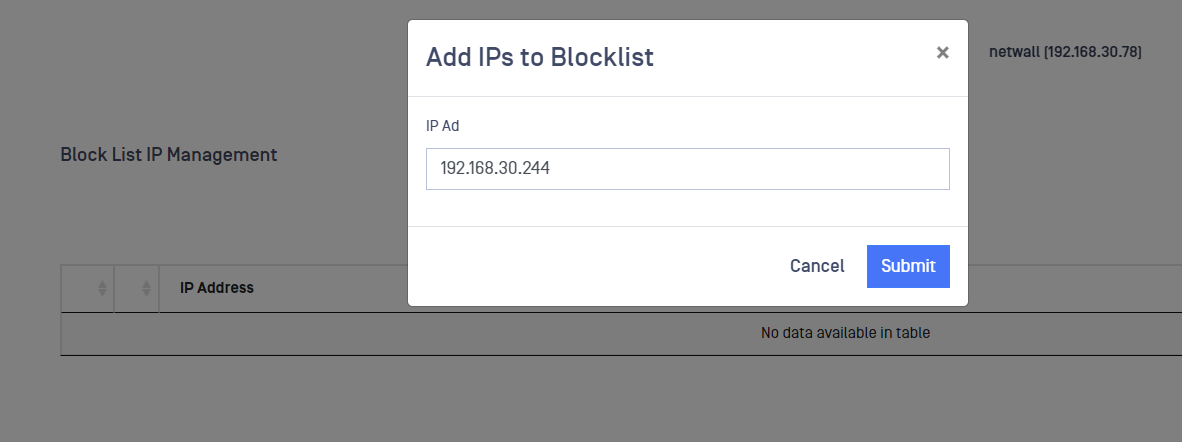

Add an IP to Blocklist

1. Open the Configuration menu and select Port Scan Detect > Blocklist IPs. The Blocklist IP Management pane displays.
2. Open the Action menu and click Add Custom IPs. A detail window displays.
3. Enter the IP address in the box.
4. Click the Submit button.

Delete an IP from Blocklisted

1. Open the Configuration menu and select Port Scan Detect > Blocklist IPs. The Blocklist IP Management pane displays.
2. Select an IP you want to delete.
3. Open the Action menu and click Delete Selected.

Click the Submit button to confirm your action.
