MetaDefender File Security App for Splunk

Function

Track the performance and security posture of the MetaDefender ICAP Server using a time-based selector. This application offers insights into CPU, memory, and disk usage, enabling effective resource management and system health monitoring.

• Performance metrics

  • CPU & Memory Usage: Monitor utilization trends over time to detect performance bottlenecks or abnormal behavior.
  • Disk Space: View disk usage patterns to avoid storage-related interruptions.

• Request status

  • Processed vs Blocked Requests: Visualize request outcomes, identifying how many were blocked due to threats or policy violations.
  • Top ICAP Clients: Identify which IP addresses are generating the most traffic—what’s allowed vs. blocked.
  • Request Status by Client: Analyze how different clients are interacting with the ICAP server—what’s allowed vs. blocked.

• Scan server insights

  • File Scan Results: See how many files were successfully scanned or failed across different scan servers. Additionally, gain clarity on scanning performance by scan server workflow for fine tuning optimization.

Install and Configure MetaDefender File Security App for Splunk

Installation

1. Offline installation

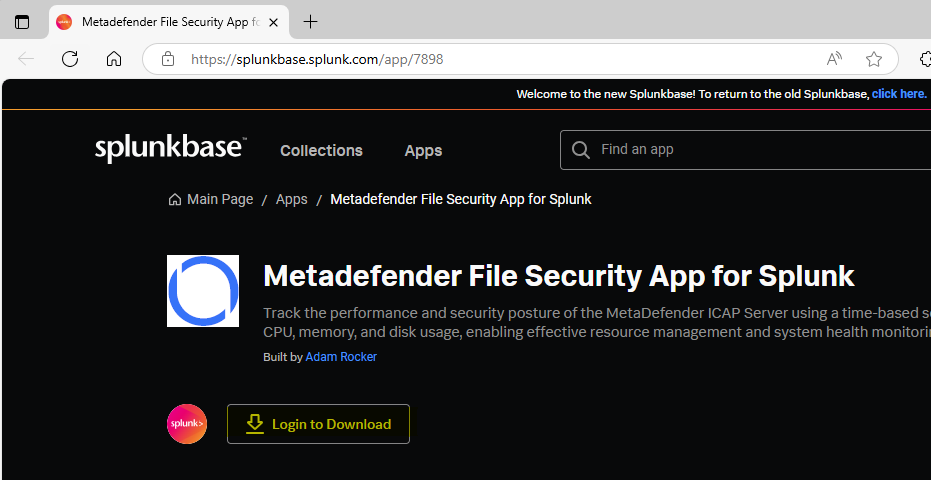

• Download the package from Splunkbase: https://splunkbase.splunk.com/app/7898

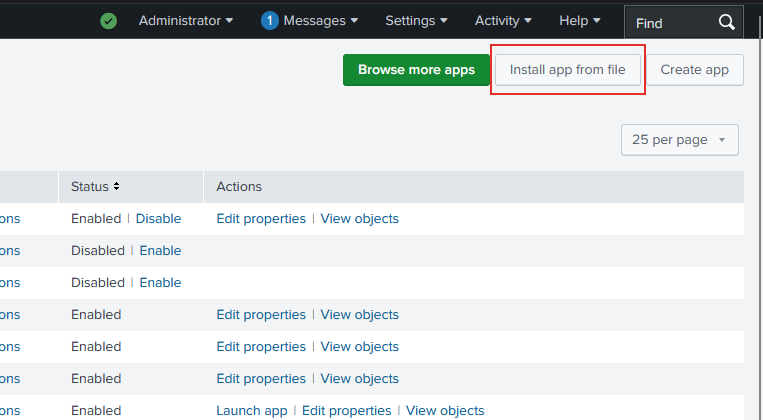

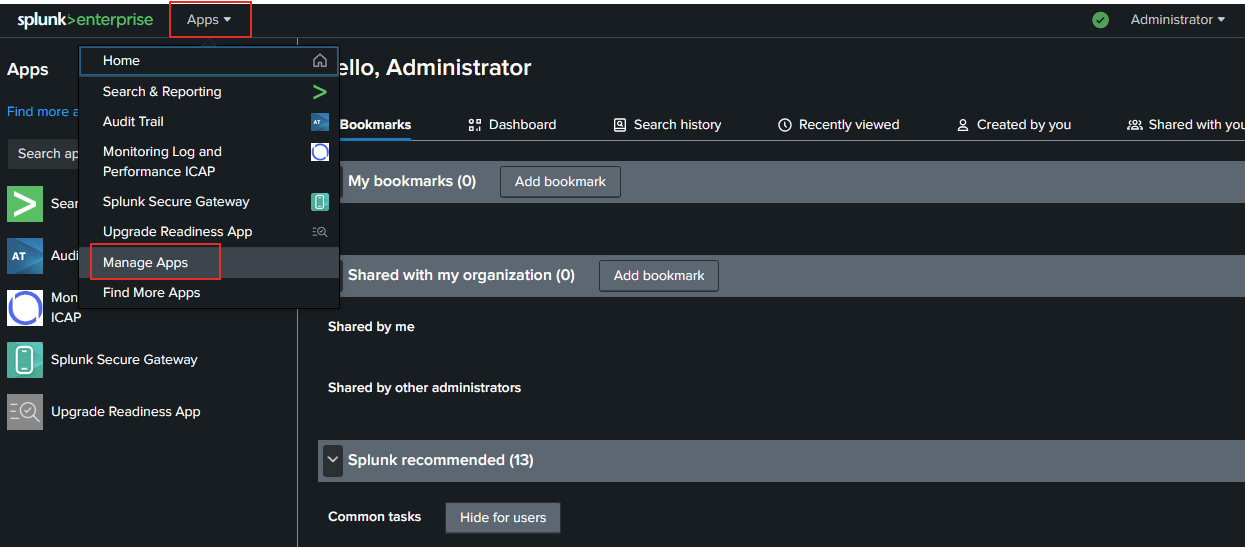

• In Splunk Enterprise, go to App → Manage Apps → Install app from file

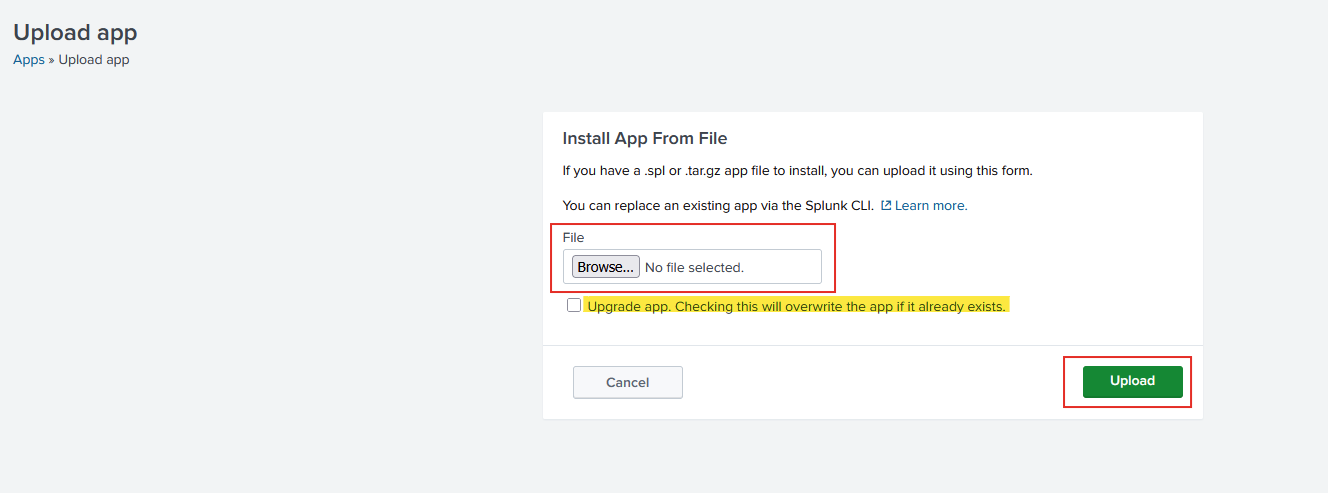

• Click Browse to select the Splunk app file (.spl), then click Upload

After successfully installing the ICAP Splunk app, restart the Splunk service to apply the changes.

2. Online installation

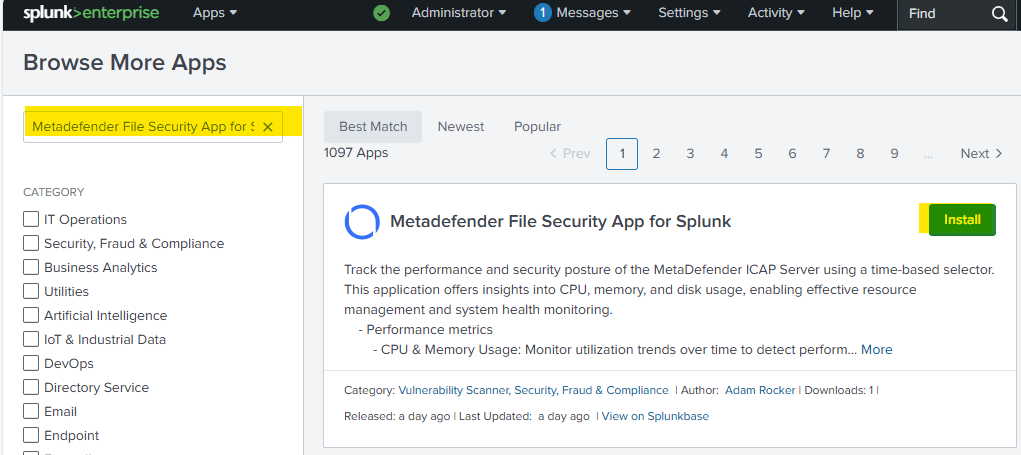

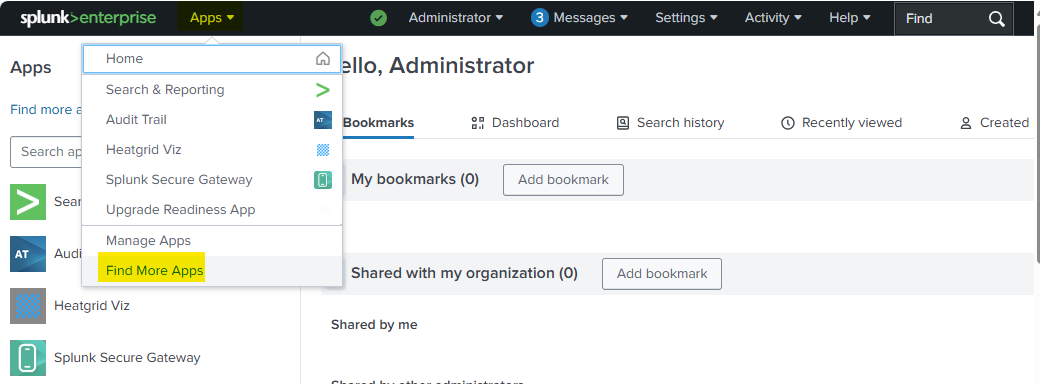

• In the Splunk enterprise UI: go to Apps → Find More Apps

• Search for "MetaDefender File Security App for Splunk"
• Click Install

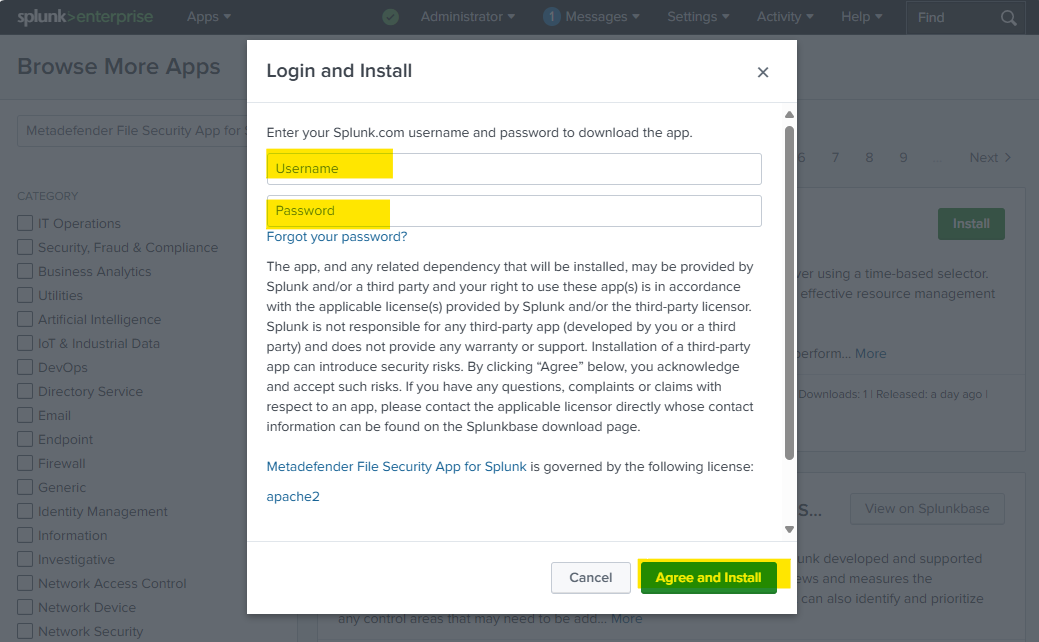

• Sign in with your Splunk.com credentials to install

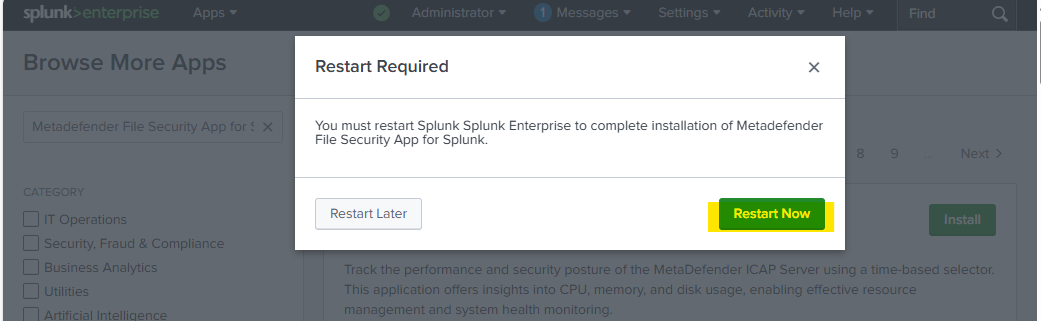

• Click Restart Now to restart the Splunk service and complete the installation.

Configure the MetaDefender File Security App for Splunk

Step 1: Configure TCP input in Splunk Enterprise to receive syslog data from MetaDefender ICAP Server and MetaDefender Core.

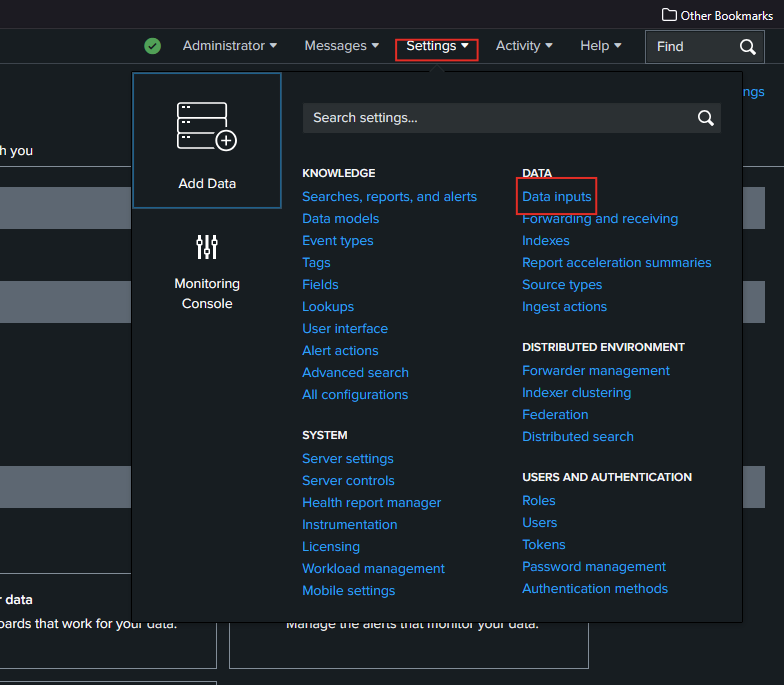

• Go to Settings → Data inputs

• Select TCP to set up the TCP Server
• Click Add new

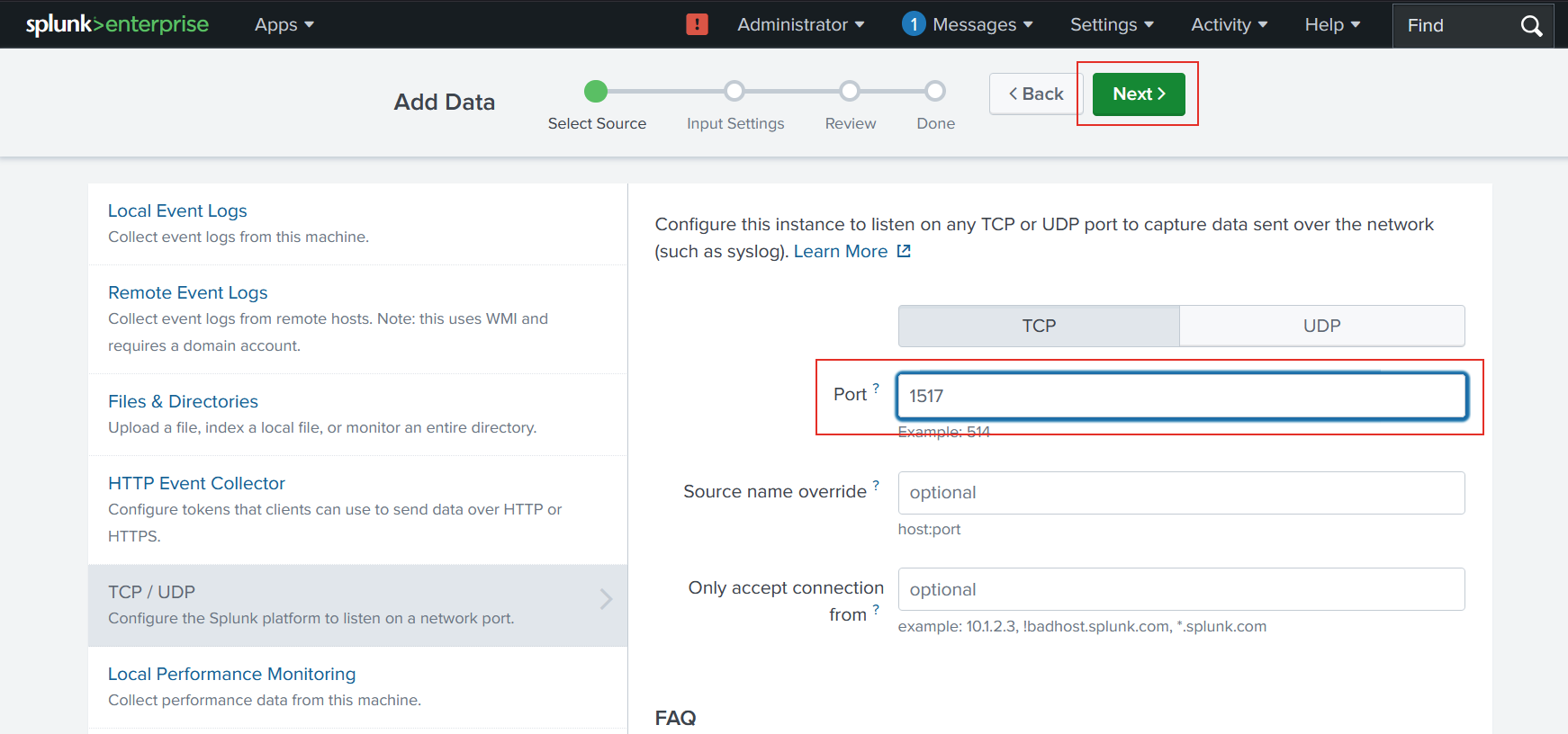

• Choose TCP port of server (E.g. Port 1517)
• Click Next

• Set up Input Settings → Custom:
  • mdicapsrv_log_sourcetype: for MetaDefender ICAP Server, or
  • mdcore_log_sourcetype: for MeteDefender Core

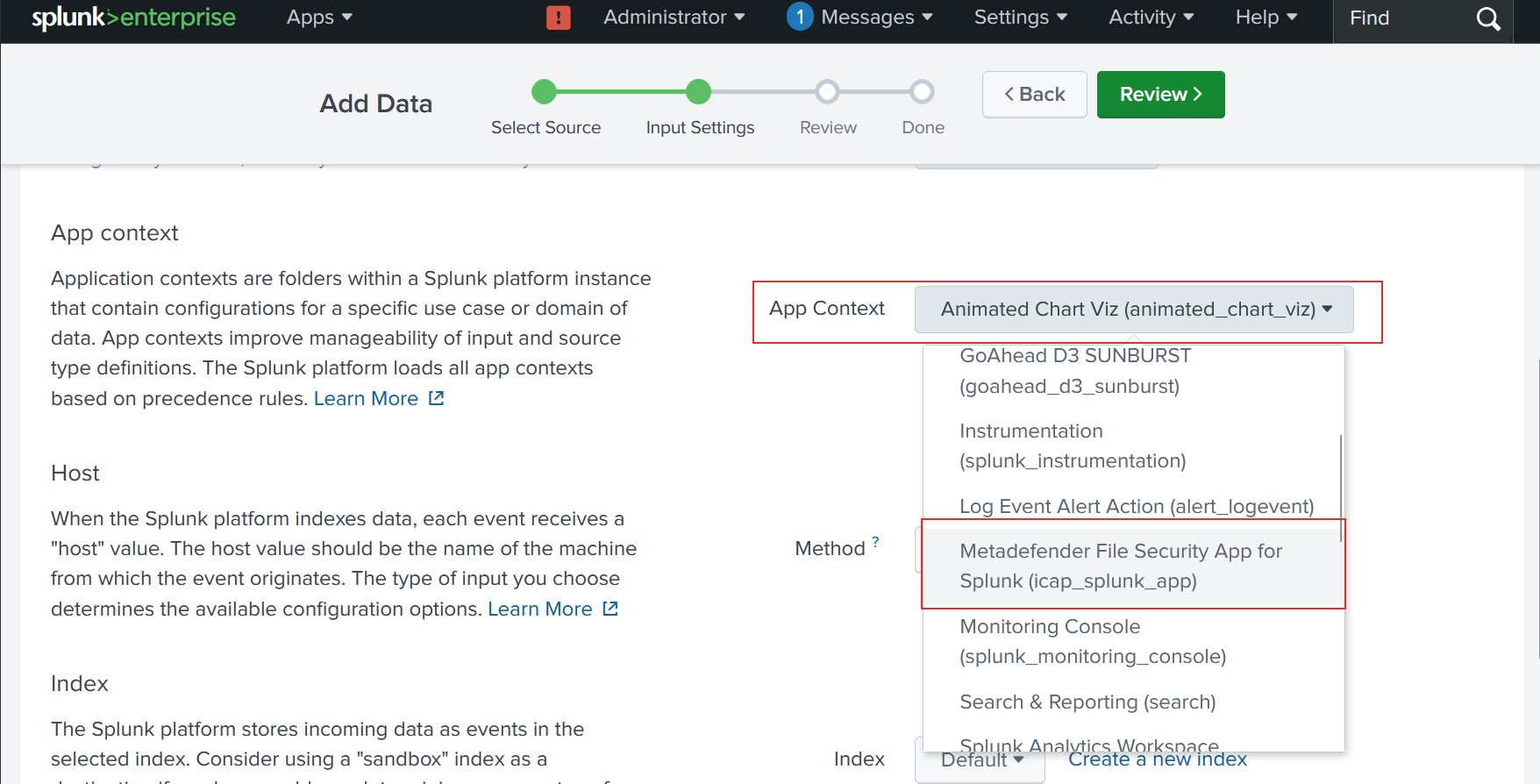

• Under App context, select MetaDefender File Security App for Splunk

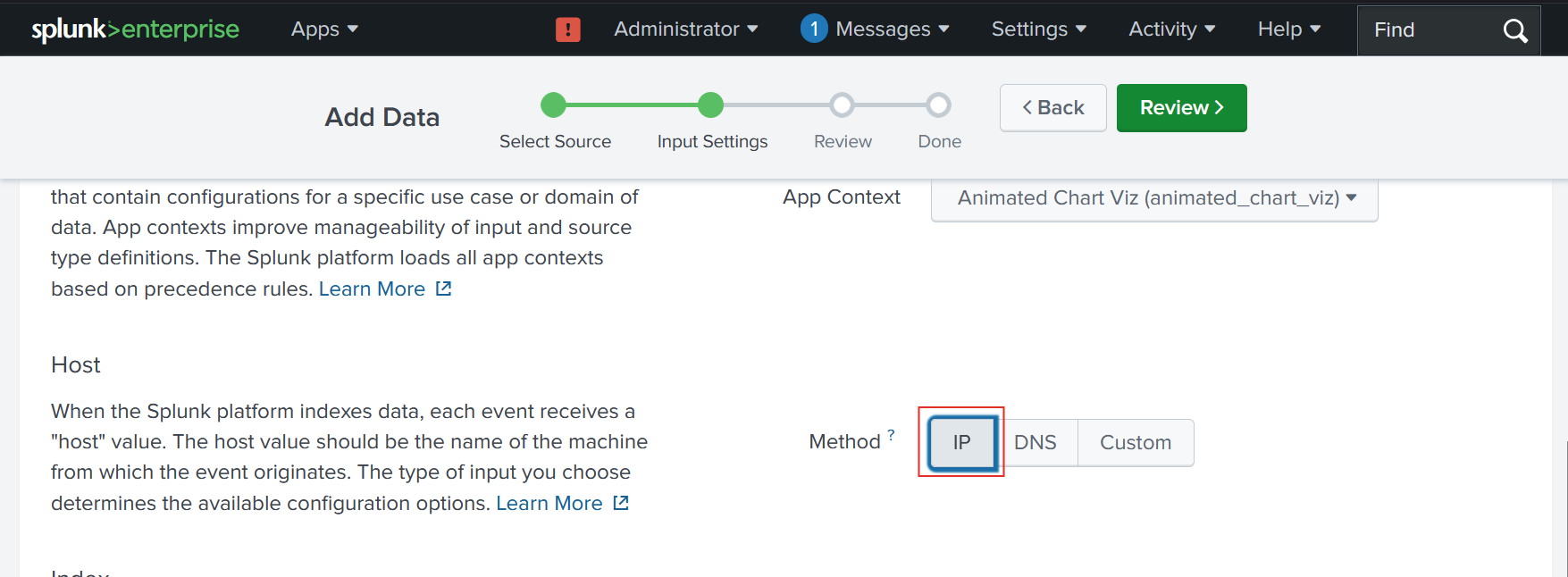

• Under Host, select IP.

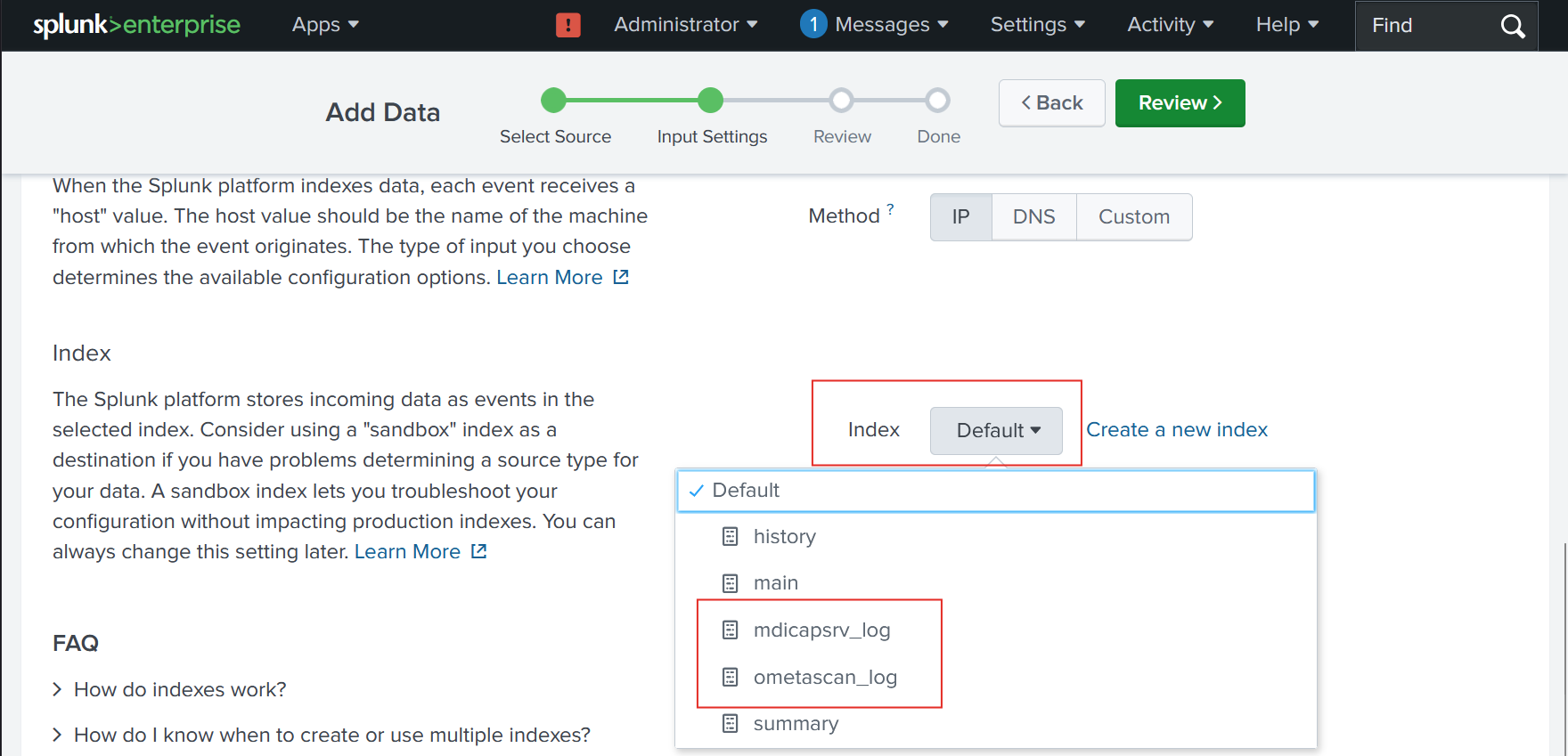

• Index: Select mdicapsrv_log for MeteDefender ICAP Server or ometascan_logfor MetaDefender Core

• Click Review and Submit.

Configure MetaDefender ICAP Server and MetaDefender Core

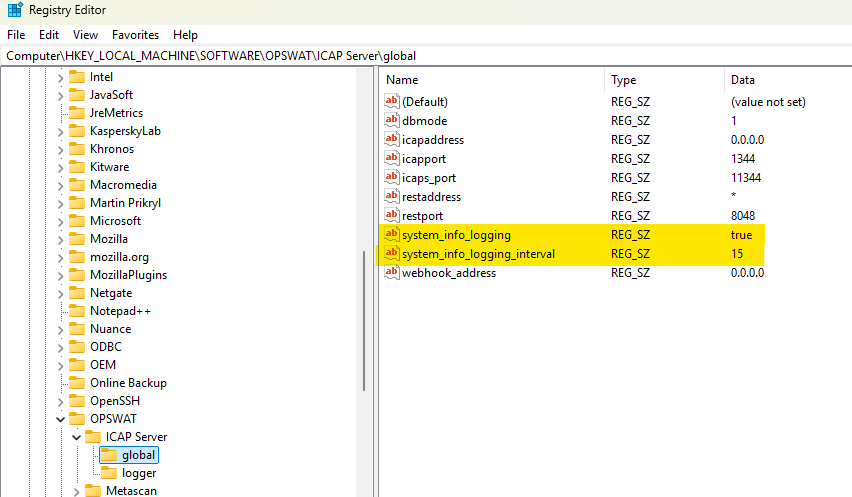

To collect the system statistic such as CPU, RAM, and disk space from MetaDefender ICAP Server, enable the following option in the configuration file:

systeminfo_logging=true (This setting is mandatory for logging the resource information)

By default, resource logging occurs every 15 seconds. To adjust the frequency, use this flag option: systeminfo_logging_interval.

(refer to Configuration file for more information)

Forward Logs to Splunk via TCP

The syslog feature of MetaDefender ICAP Server and MetaDefender Core will help send the log to the Splunk server via TCP directly.

For example, if the Splunk Server IP address is 127.0.0.1 and opens receive the log at port 1515, then configure the logger section with:

syslog=tcp:/127.0.01:1515

syslog_level=info

This version does not support log under CEF format.

You need to disable CEF format (disabled by default) to work normally

To disable CEF, set cef=false in logger section

Refer to these links for more information:

• MetaDefender ICAP Server:

  • Linux: logger section

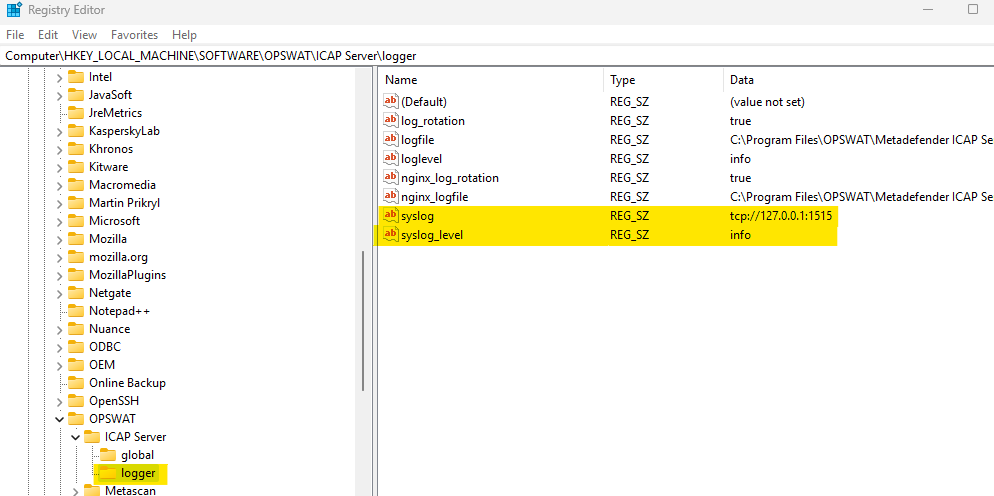

  • Windows: HKEY_LOCAL_MACHINE\SOFTWARE\OPSWAT\ICAP Server\logger

• MetaDefender Core:

  • Linux: logger session

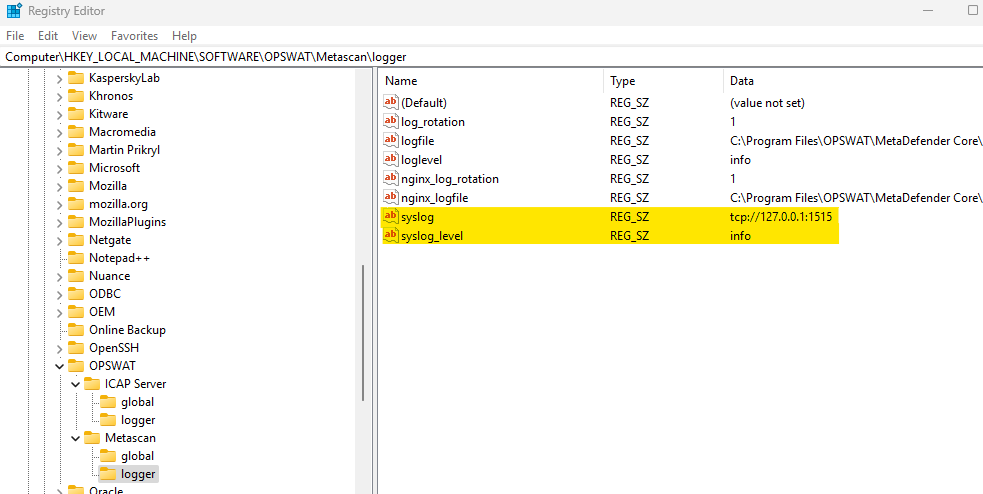

  • Windows: Logger

MetaDefender ICAP Server

• Windows

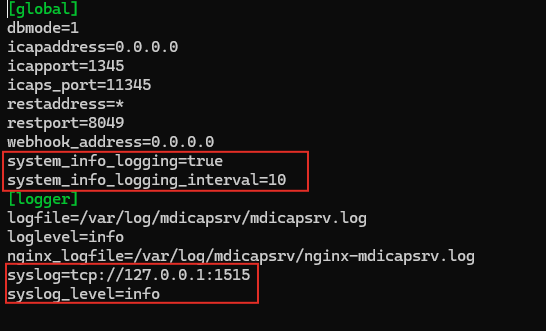

• Linux (file: /etc/mdicapsrv/mdicapsrv.conf)

MetaDefender Core

• Windows:

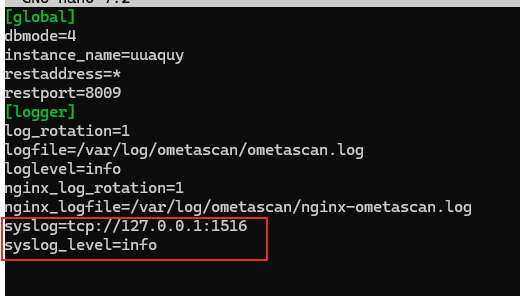

• Linux (file /etc/ometascan/ometascan.conf)

Splunk Chart UI Components

System Resource Monitoring

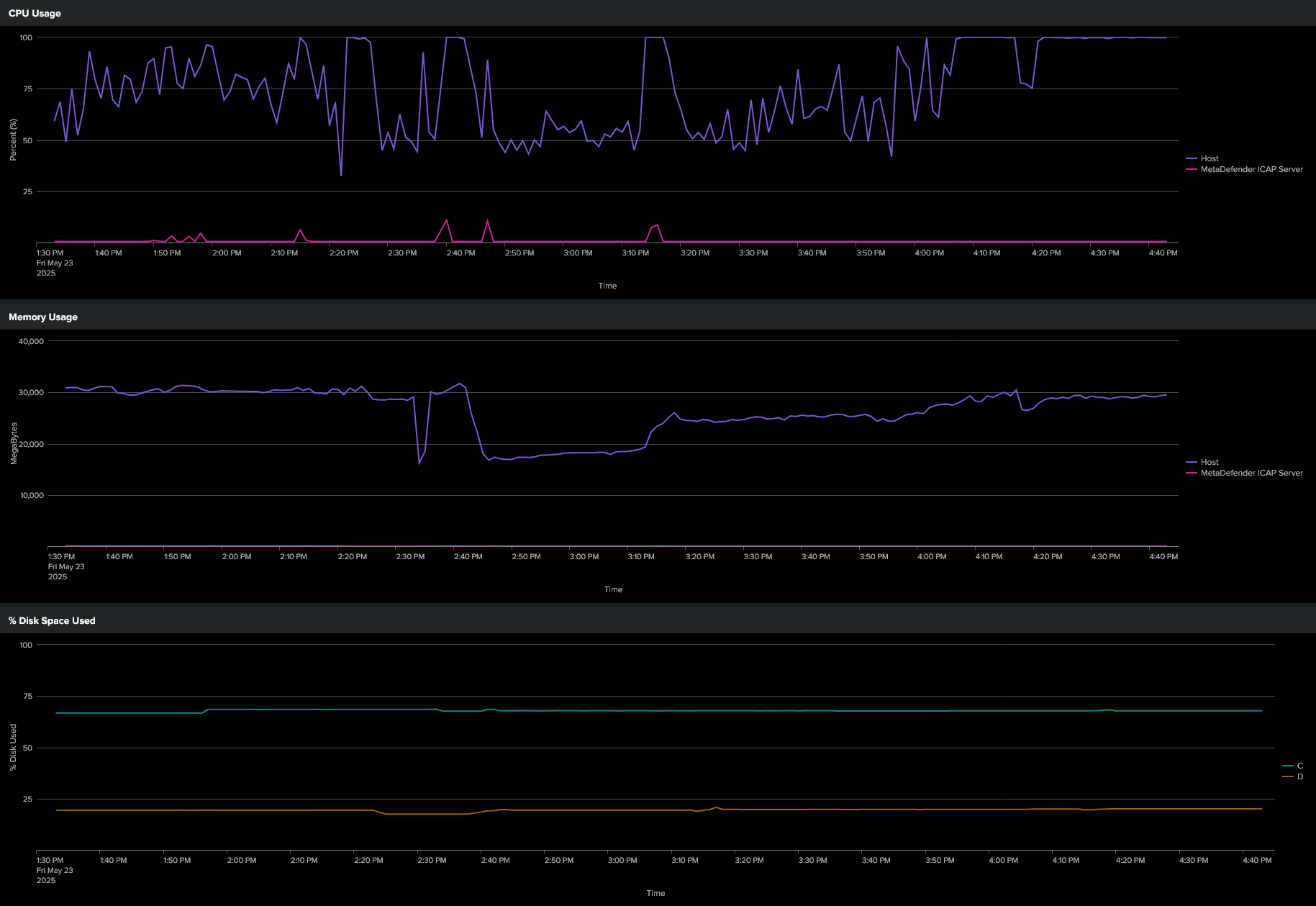

Monitor CPU, memory, and disk space used over time.

Monitoring CPU, memory & disk space used

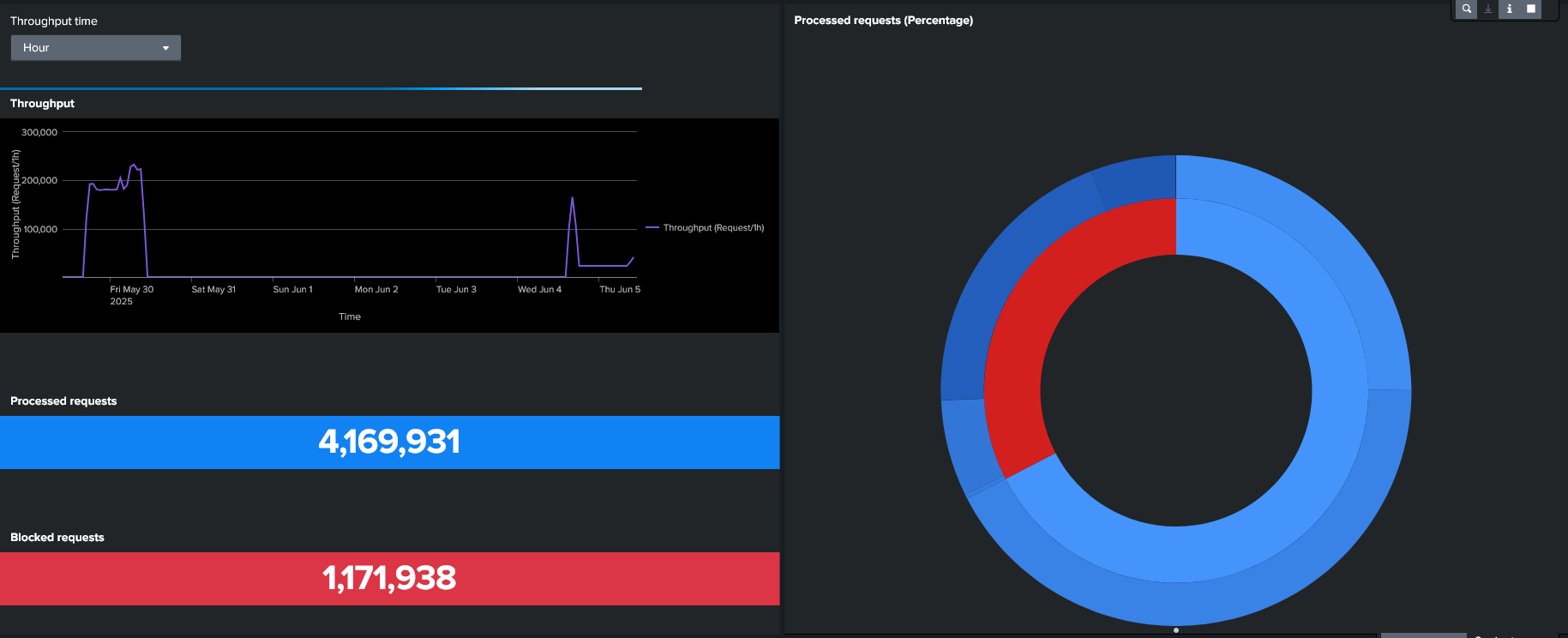

Throughput Requests & Processed Requests

• Details on how many requests processed in 1 hour/day (user can select this)
• See the number of processed requests and the number of blocked requests
• Show the percentage of the allowed vs. blocked request and the scan verdicts

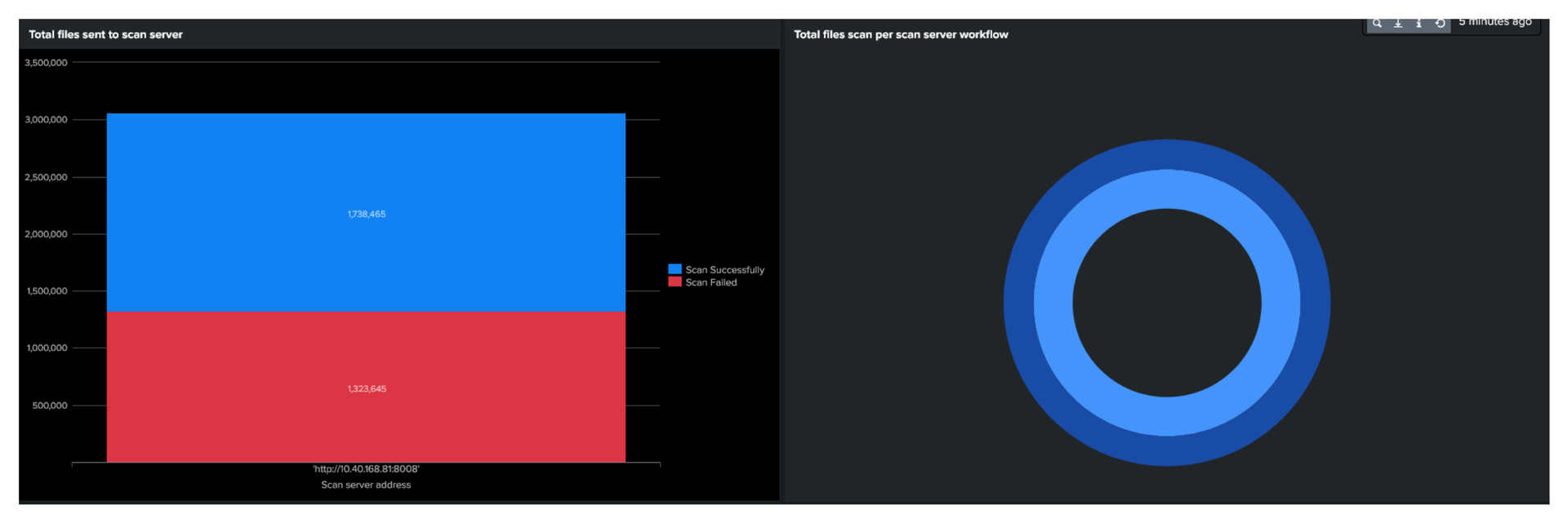

Scan Server Insights

• Track the total number of scanned files

• Monitor the finished and failed scans of each scan server

  • Failed scans: All files that are not scanned due to errors (Overload, Could not connect, Scan timeout, etc.)
  • Successful scans: All files that are scanned with a returned JSON result, including verdict to client

• Percentage of scan file for each scan server workflow

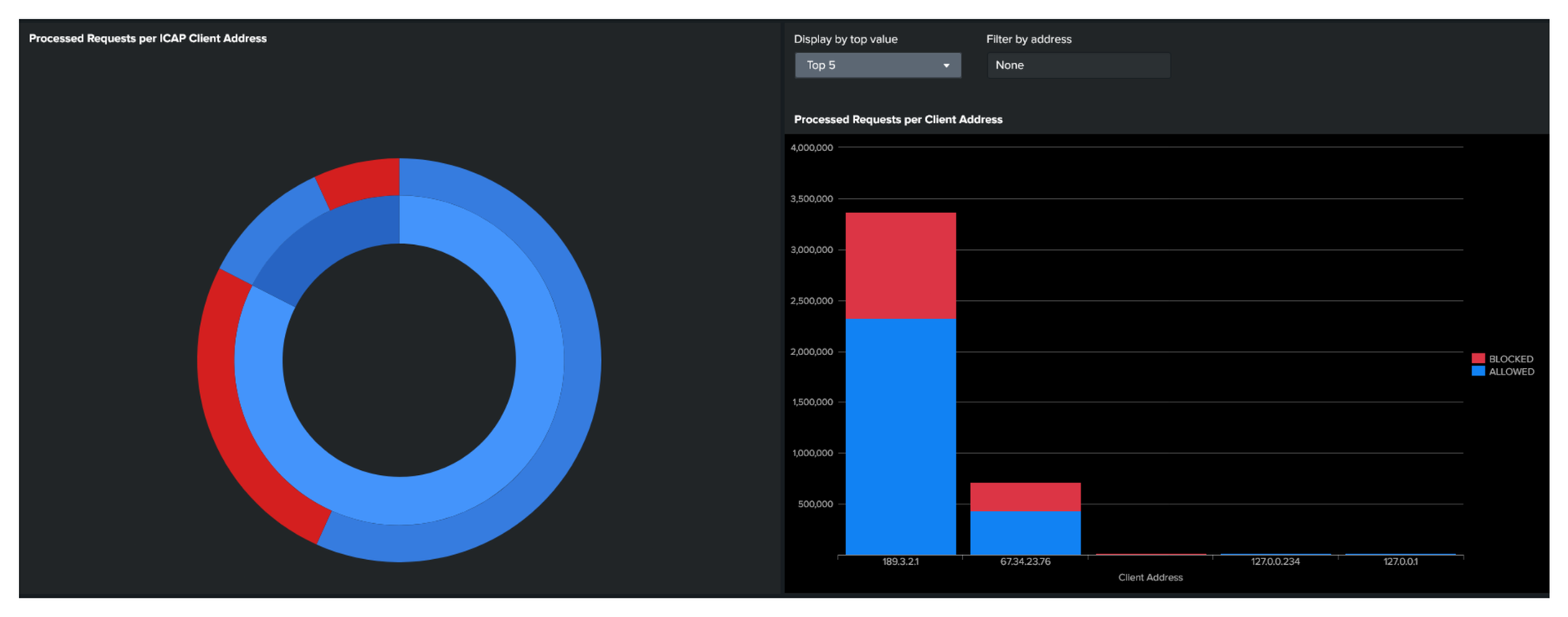

Number of Processed Requests per Client Address & ICAP Client Address

• Display the number of requests (that are blocked or allowed) for each of the client IP address
• Filter by client address or show the top X values of client address

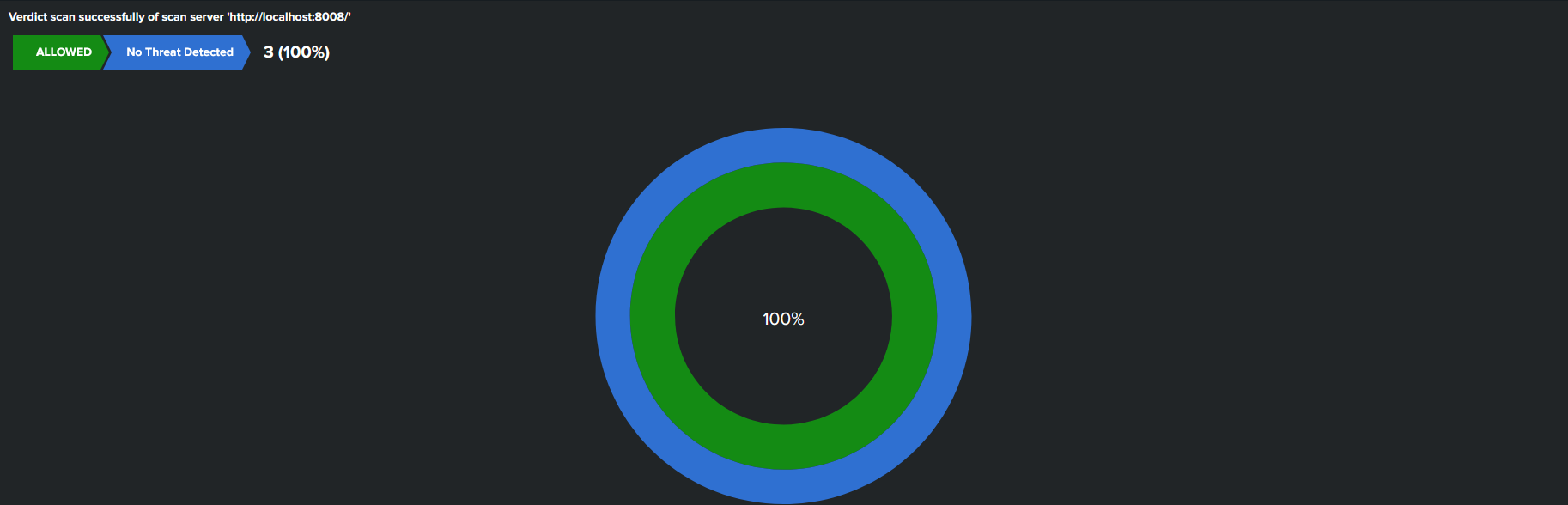

Detailed Scan Server Address View

In the Statistics Files per Scan Server view:

• Click on the chart column (scan finish or failed) → Show Detail of Scan Successful (by Scan Server Address) or Scan Failed (by Scan Server Address)
• Apply filter by action (allowed or blocked), verdicts, and workflows
• Sort scan result by verdicts or number of files

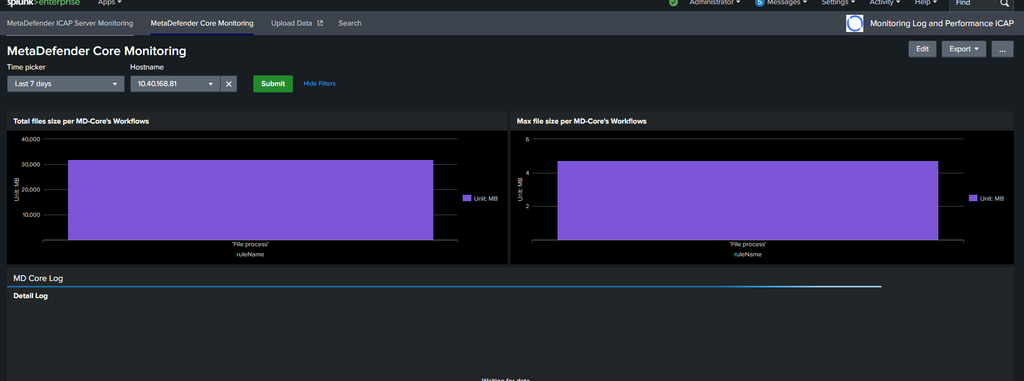

MetaDefender Core Monitoring

• Total files size per MetaDefender Core’s Workflows: Displays the total processed file size, grouped by ruleName, in megabytes (MB).
• Max file size per MetaDefender Core’s Workflows: Shows the maximum file size processed in each workflow, grouped by ruleName, in MB.
