NGINX Ingress Controller Integration

OMetaScan NGINX Ingress Controller Configuration

The configuration of OMetaScan NGINX Ingress Controller is similar to the NGINX Ingress Controller Introduction - NGINX Ingress Controller (kubernetes.github.io)

ConfigMaps

ConfigMaps allow you to decouple configuration artifacts from image content to keep containerized applications portable.

The ConfigMap API resource stores configuration data as key-value pairs. The data provides the configurations for system components for the nginx-controller.

Name	Type	Default	Usage
enable-ometascan	bool	“false”	Enable or Disable ometascan module globally Note: You must enable this config to use ometascan module

Annotations

Name	Type	Default	Usage
nginx.ingress.kubernetes.io/ometascan-send-timeout	number	60	Sets a timeout for transmitting a request to the proxied server. The timeout is set only between two successive write operations, not for the transmission of the whole request. If the proxied server does not receive anything within this time, the connection is closed.
nginx.ingress.kubernetes.io/ometascan-read-timeout	number	86400 (1 day)	Defines a timeout for reading a response from the proxied server. The timeout is set only between two successive read operations, not for the transmission of the whole response. If the proxied server does not transmit anything within this time, the connection is closed.
nginx.ingress.kubernetes.io/ometascan-pre-cache-size	number	`9223372036854775807` (maximum number of Nginx)	Config maximum caching size per request.
nginx.ingress.kubernetes.io/ometascan-pre-cache	"true" or "false"	"false"	Turn on/off pre-caching request when sending to ICAP Server
nginx.ingress.kubernetes.io/ometascan-pass	string	No default	Sets the protocol and address of a ICAP server and an optional URI to which a location should be mapped. e.g: http://icap-address:8043 Note: Must have it for enable annotation
nginx.ingress.kubernetes.io/ometascan-methods	string	GET HEAD POST PUT PATCH DELETE	This directive specifies HTTP request methods that are considered by `ometascan_pass`. HTTP request methods not listed will be skipped completely. The following HTTP methods are allowed: `GET`, `HEAD`, `POST`, `PUT`, `PATCH`, and `DELETE`
nginx.ingress.kubernetes.io/ometascan-connect-timeout	number	60	Defines a timeout for establishing a connection with a proxied server. It should be noted that this timeout cannot usually exceed 75 seconds.

You can add these Kubernetes annotations to specific Ingress objects to customize their behavior.

OMetaScan NGINX Ingress on Minikube

Requirement

Minukube: https://minikube.sigs.k8s.io/docs/
NGINX Ingress with OMetascan module images on docker hub
- For example:
  - latest image: opswat/nginx-ingress
  - or specific the tag: opswat/nginx-ingress:controller-1.5.1_ometascan-1.0.0_r1
MD ICAP Server at least version v5.1.0 which has already enable NGINX integration NGINX Integration Configurations

Pre-setup

Enable Nginx ingress on Minikube

start minikube

enable the NGINX Ingress controller, run the following command

Verify that the NGINX Ingress controller is running

The output is similar to:

Change default Nginx Ingress image to Nginx Ingress with OMetascan module image

Update the default image to opswat/nginx-ingress using the following command:

Verify that the images is changed:

the output:

Verify that the NGINX Ingress controller is replaced and running

The output is similar to:

Enable OMetascan Module

Set enable-ometascan: "true" to turn on the OMetascan module on ConfigMaps of ingress-nginx-controller:

Deploy Echo Server as Service A

refer to: https://github.com/Ealenn/Echo-Server#kubernetes

Example:

/path1 rewrite to /subpathA (use ometascan)
/path2 rewrite to /subpathB (use ometascan)
- Only PUT methods
- Max client body size 100 Mb
/path3 rewrite to /subpathC (do not use ometascan)

OMetaScan NGINX Ingress on Kubenetes

Requirements

An existing K8S cluster
Helm CLI
NGINX Ingress with OMetascan module images:

An existing MD ICAP Server on Kubernetes

Instructions

Example:

1.Install NGINX Ingress Controller via Helm Chart

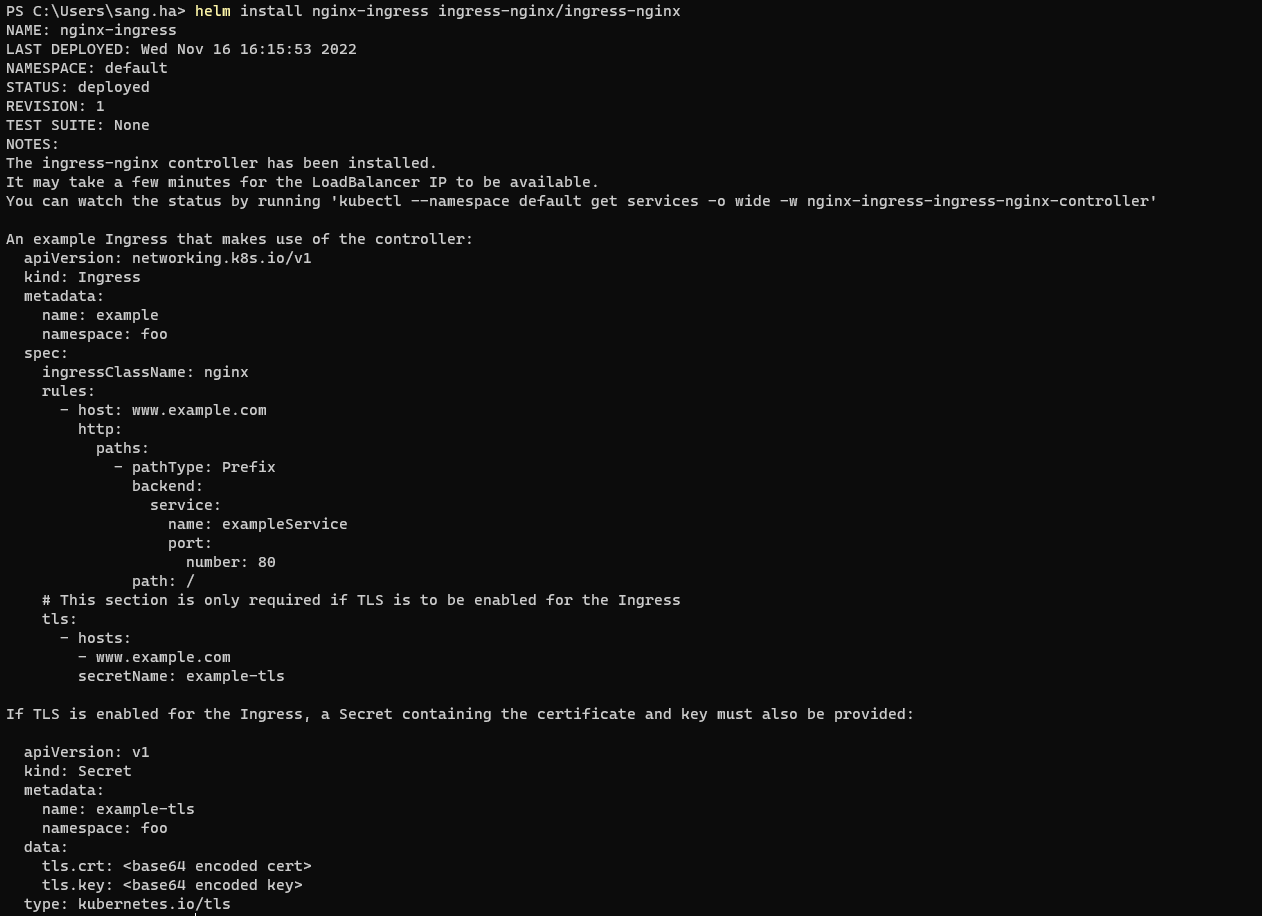

Output:

Verify the result install nginx-ingress as cli:

Output:

Make sure your nginx install with status of the pod nginx-ingress is running!

2. Replace The Ingress Controller Image

To replace the ingress controller image, we need to patch the existing k8s resource (deployment, DaemonSet, etc.) for the existing ingress controller to include the new image. For this, edit the ingress-controller-patch-image.yml file and replace the container name to match the existing controller and run the following command (replace 'deployment' and 'ingress-nginx-controller' with your specific resource type and name for the controller):

ingress-controller-patch-image.yml
