What can I do if the NetWall shows high disk consumption?

Issue

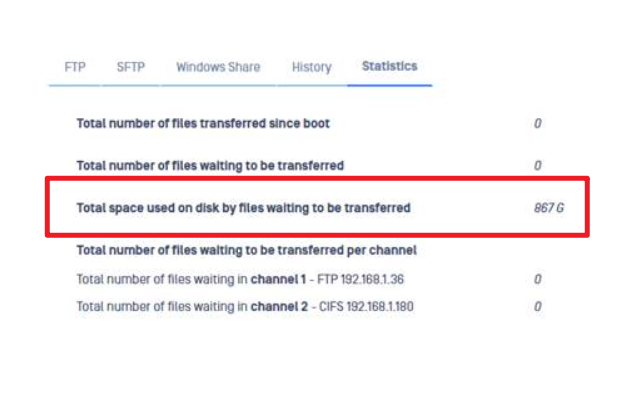

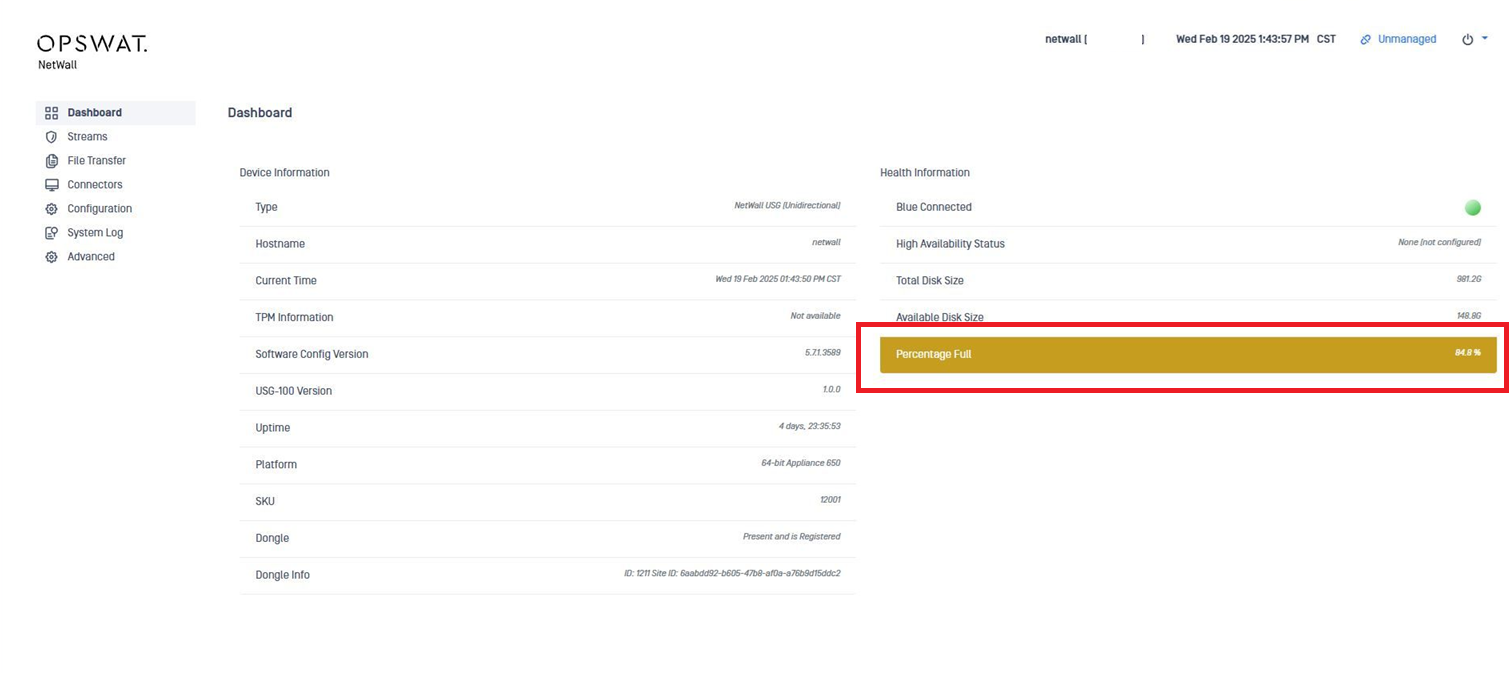

NetWall alerts about high disk utilization which could prevent the correct functioning of the product.

Causes

The most common cause of this issue is connectivity issues on the RED side in deployments where File Transfer is enabled and the file transfer destination is unreachable or have some problems receiving files.

Troubleshooting

In order to verify , please follow the steps below:

1. Ensure that the source and destination channels in the NetWall configuration are the same on the BLUE and RED side. Source file transfer from BLUE on channel 1 should match Destination file transfer channel 1 on RED.

2. Ensure that there are not any connectivity issues between NetWall(RED) and the file transfer destination.

   1. Check the status of the “Test” function.
   2. If the Test results on a connection timeout or connection refusals. If there are any, the problem may be on the destination. Check the connections.

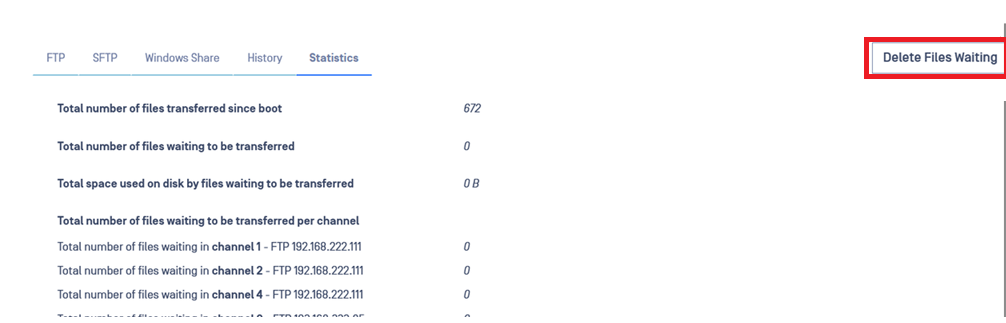

3. If the problem is related to connection issue where files that where expected to be transferred are running into problems at the destination, you can try to delete the files waiting to be transferred:

4. If you still have issues, please reach out to our support team for further assistance. If possible, collect a support package that can be shared from both of the NetWalls.
