FTP Server

FTP Server Connector allows the user to configure a built-in FTP Server in both sides, BLUE and RED giving the user flexibility to decide how FTP transfers would work, transfer the information from BLUE side (either using a flanker or the mentioned built-in server) to RED side either using a flanker or the mentioned built in server.

MetaDefender Security Gateway BLUE

FTP Server Configuration

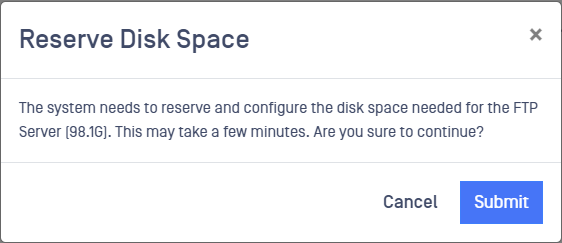

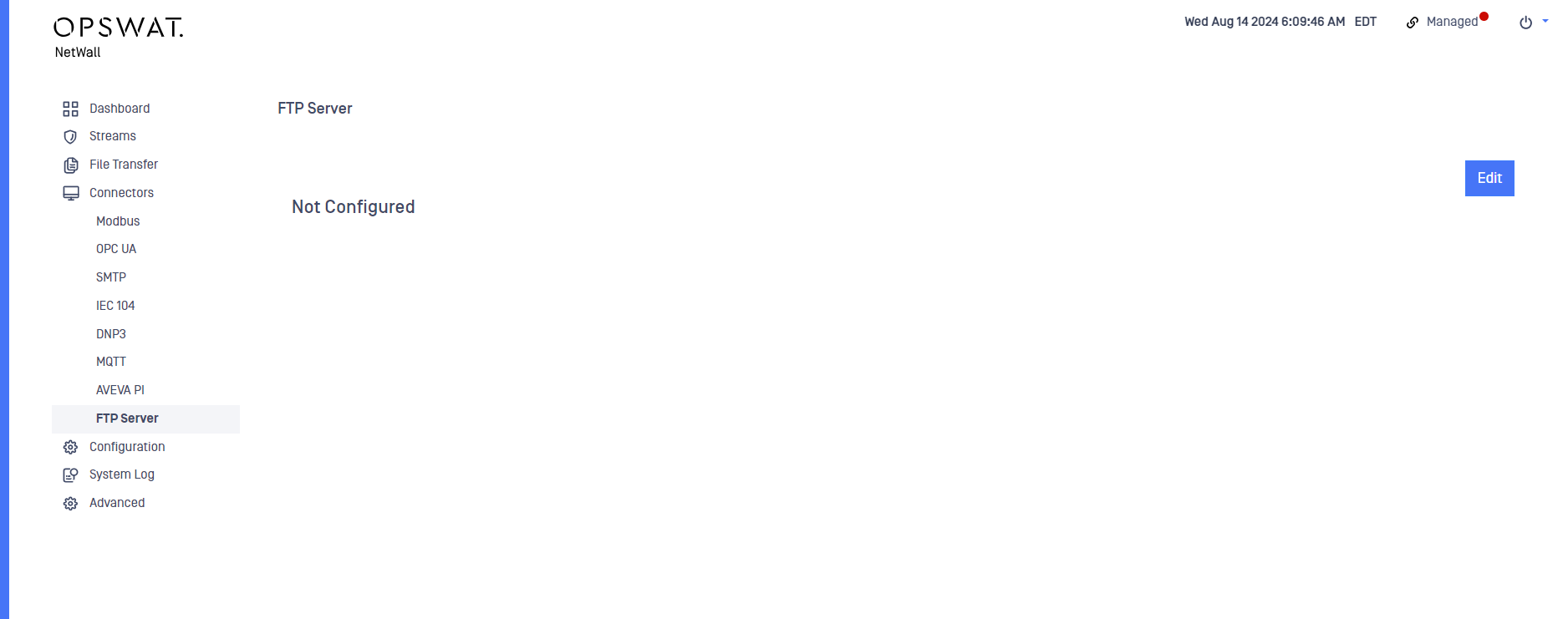

Login into MetaDefender Security Gateway BLUE. If the FTP Server hasn't been previously configured the user will see a Edit button to include a new FTP Server. This feature requires to reserve disk space to allow it to act as a FTP Server so, once the Edit button is pushed user would be notify of this circumstance via the message bellow.

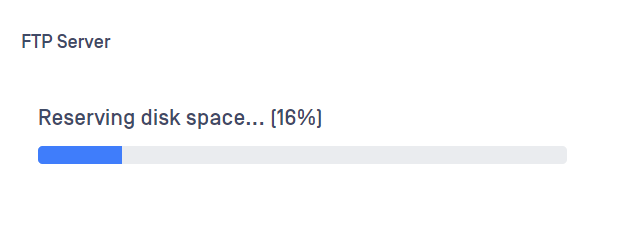

Once the needed space has been reserved the user should indicate the following information.

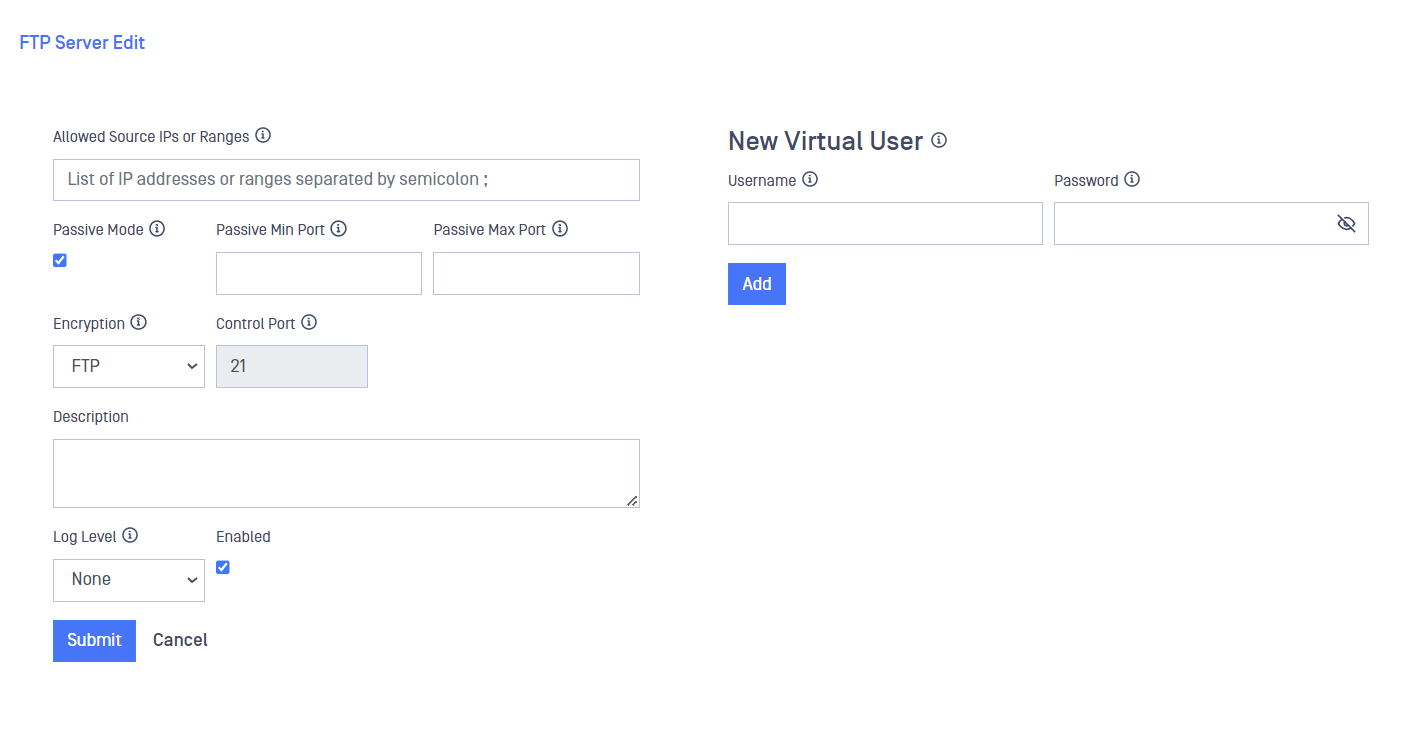

1. Type or select values in the following boxes:
   1. Allowed Source IPs or Ranges: List of IP addresses alowed to connect to the FTP Server. User can enter several addresses or ranges separated by semicolon. Empty field means ANY IP will be allowed to connect.
   2. Passive Min Port: Minimum port number that the FTP Server will use in passive mode. Range from 1024 to 65535.
   3. Passive Max Port: Maximum port number that the FTP Server will use in passive mode. It must be higher than Passive Min Port field. The number of total ports should be higher than the number of concurrent FTP clients allowed. Range from 1024 to 65535.
   4. Encryption: Select the preferred Encryption schema used by the FTP Server. Options are FTP, FTPES (explicit) and FTPS (implicit).
   5. Control Port: Port used by the server to listen to the clients.
   6. Log Level: Select the Log Level using the drop down list. Options are None, Basic and High.
   7. Description: Free text field to include a description.
   8. New Virtual User; Username: Configure a user that the FTP Clients connecting to the Server need to use for authentication.
   9. New Virtual User; Password: Configure a password that the FTP Clients connecting to the Server need to use for authentication.

File Transfer, FTP Configuration

As mentioned before, to provide the system with more flexibility user needs to configure a FTP File Transfer in both sides.

To properly configure the FTP File Transfer, follow the instructions below for these specific fields:

1. Go to File Transfers-> FTP and click on Add FTP Share.
2. Server: Indicate the IP of the FTP Server in BLUE side (most times that would be the same as management IP).
3. Share Path: the share path for the built in FTP Server is /files.
4. User: Indicate the user configured in the FTP Server as Virtual User.
5. Password: Indicate the password configured in the FTP Server for the Virtual User.
6. Encryption: User needs to indicate the same encryption as the one configured in the FTP Server.

MetaDefender Security Gateway RED

FTP Server Configuration

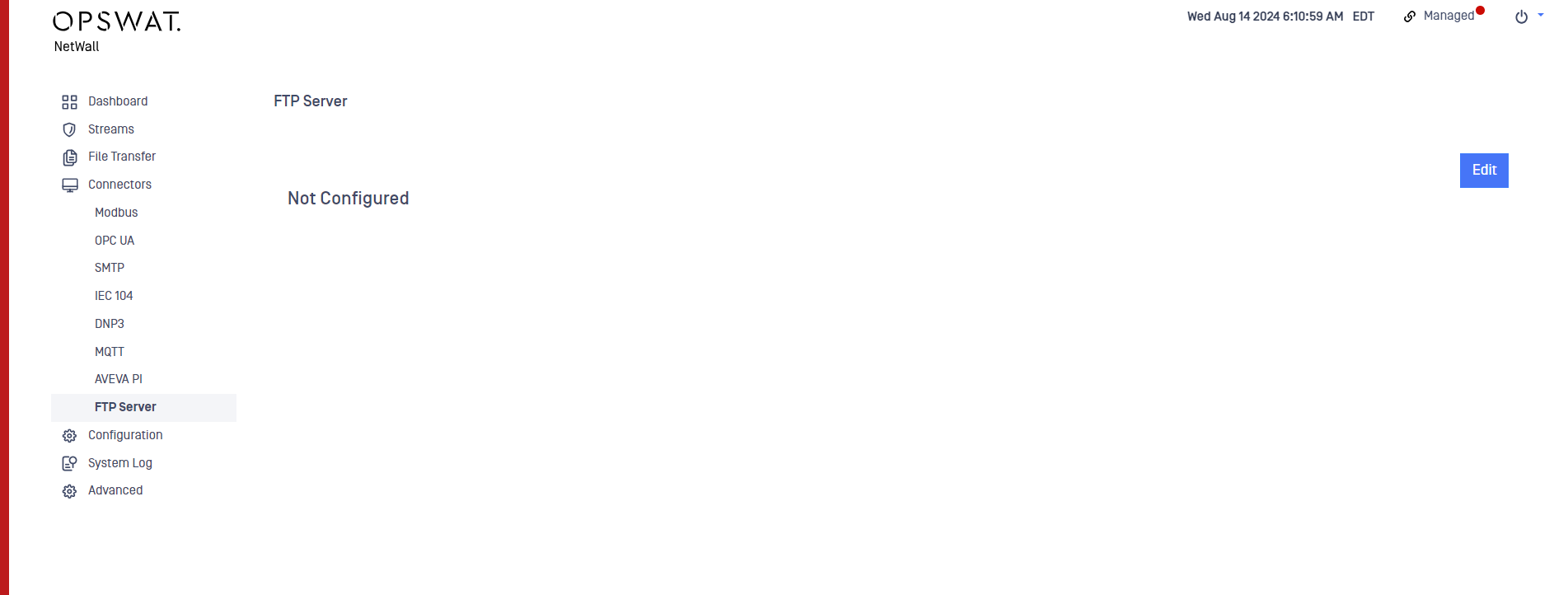

If the FTP Server hasn't been previously configured the user will see a Edit button to include a new FTP Server. This feature requires to reserve disk space to allow it to act as a FTP Server so, once the Edit button is pushed user would be notify of this circumstance via the message bellow.

Once the needed space has been reserved the user should indicate the following information.

1. Type or select values in the following boxes:

   1. Allowed Source IPs or Ranges: List of IP addresses alowed to connect to the FTP Server. User can enter several addresses or ranges separated by semicolon. Empty field means ANY IP will be allowed to connect.
   2. Passive Min Port: Minimum port number that the FTP Server will use in passive mode. Range from 1024 to 65535.
   3. Passive Max Port: Maximum port number that the FTP Server will use in passive mode. It must be higher than Passive Min Port field. The number of total ports should be higher than the number of concurrent FTP clients allowed. Range from 1024 to 65535.
   4. Encryption: Select the preferred Encryption schema used by the FTP Server. Options are FTP, FTPES (explicit) and FTPS (implicit).
   5. Control Port: Port used by the server to listen to the clients.
   6. Log Level: Select the Log Level using the drop down list. Options are None, Basic and High.
   7. Description: Free text field to include a description.
   8. New Virtual User; Username: Configure a user that the FTP Clients connecting to the Server need to use for authentication.
   9. New Virtual User; Password: Configure a password that the FTP Clients connecting to the Server need to use for authentication.

2. Click on Submit button.

File Transfer, FTP Configuration

As mentioned before, to provide the system with more flexibility user needs to configure a FTP File Transfer in both sides.

To properly configure the FTP File Transfer, follow the instructions below for these specific fields:

1. Go to File Transfers-> FTP and click on Add FTP Share.
2. Server: Indicate the IP of the FTP Server in RED side (most times that would be the same as management IP).
3. Share Path: the share path for the built in FTP Server is /files.
4. User: Indicate the user configured in the FTP Server RED as Virtual User.
5. Password: Indicate the password configured in the FTP Server RED for the Virtual User.
6. Encryption: User needs to indicate the same encryption as the one configured in the FTP Server.
