MetaDefender Kiosk Secure Image Deployment

Step 1: Boot into Secure Image flash-drive

If you don't have the Secure Image flash-drive ready, please follow Creating Secure Image Deployment flash drive

1. Plug USB into Kiosk Hardware.
2. Restart/Power on the device.
3. Keep pressing F12 during booting up to open Boot Menu
4. Select the created USB as boot up media (base on device name)
5. Press Enter.

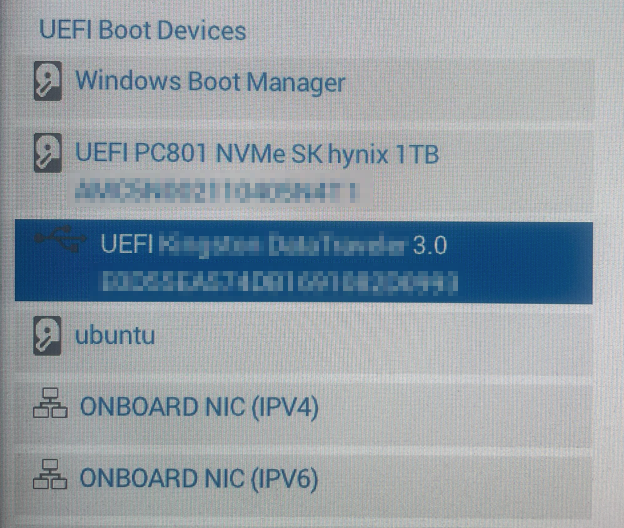

Boot Menu from the Kiosk K1001 (Dell 7410)

Step 2: Deploy Secure Image

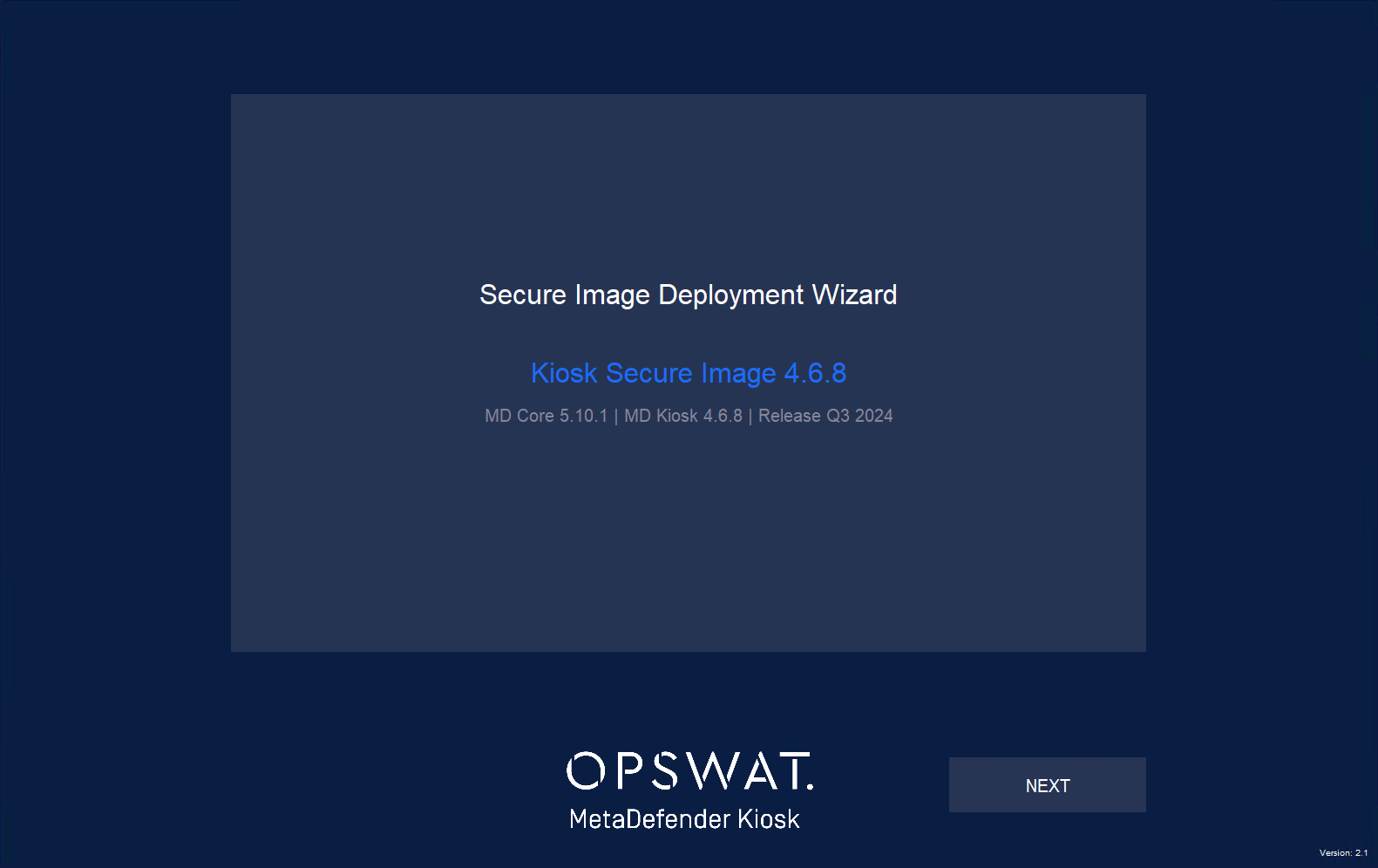

• Following the boot into the WinPE environment, the Deployment Wizrd will appear.

You can see the Image information and click Next button to continue to the next step.

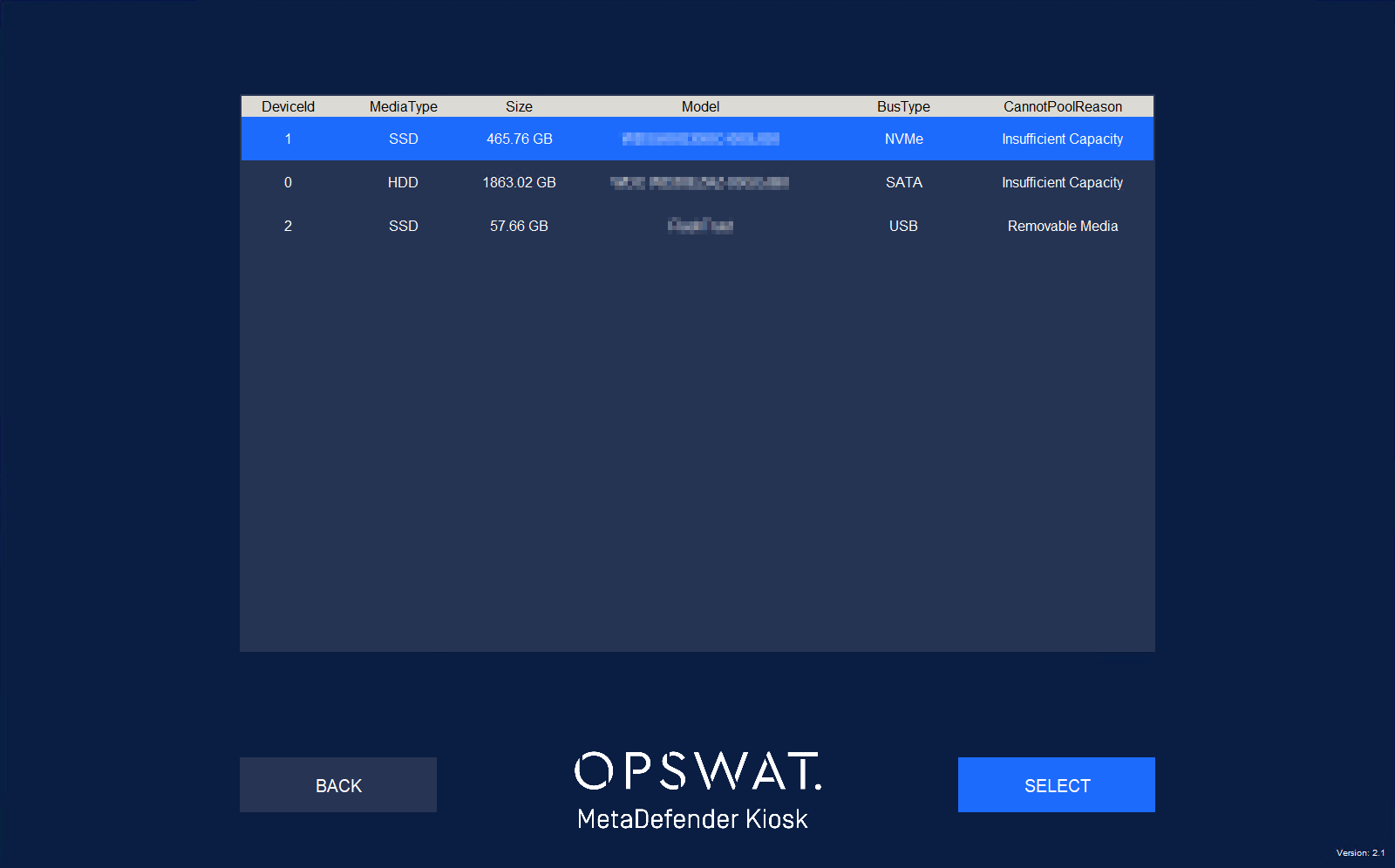

• Choose the disk to apply the image on the next screen.

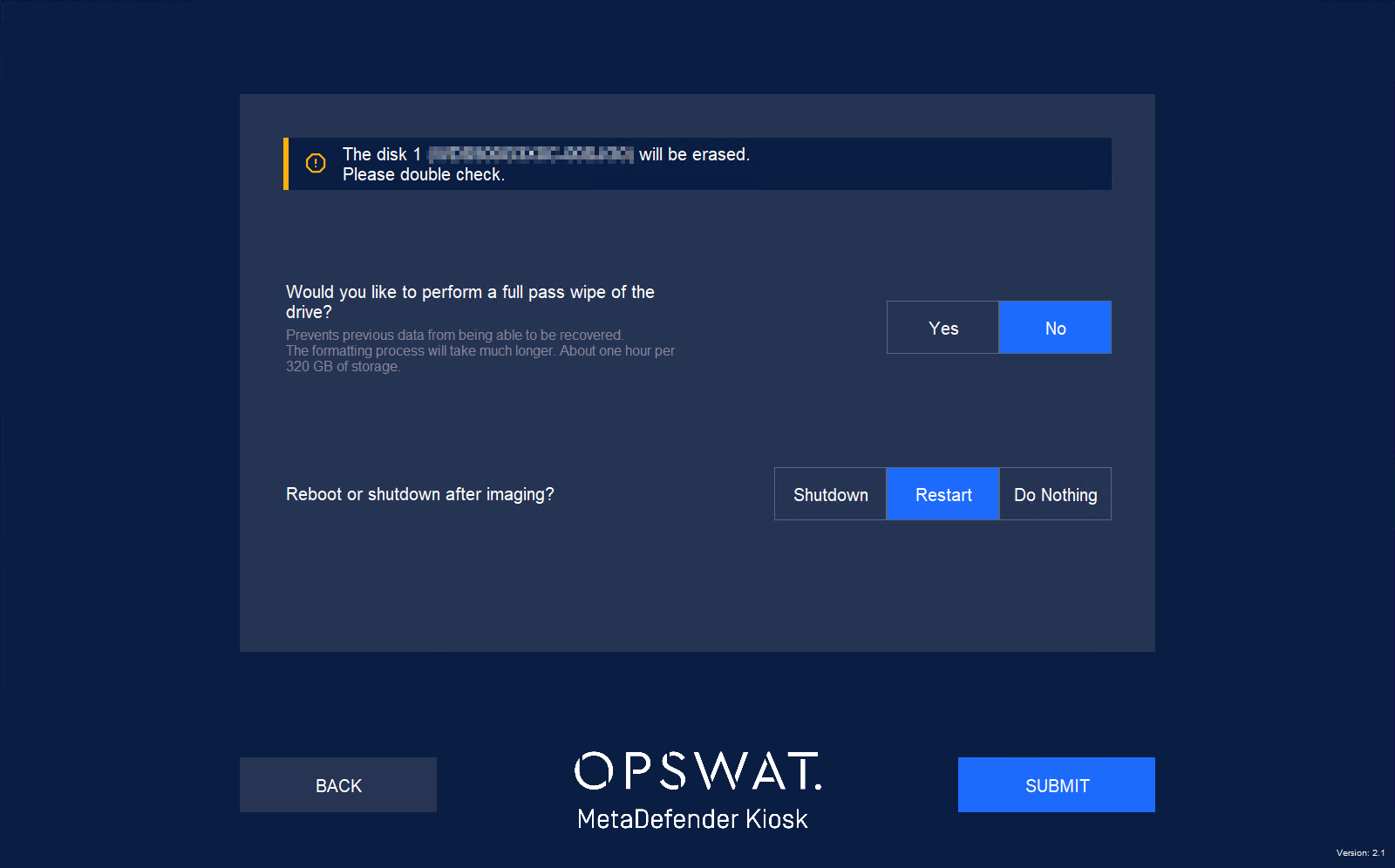

• Choose the desired options, then click the SUBMIT button to start the installation.

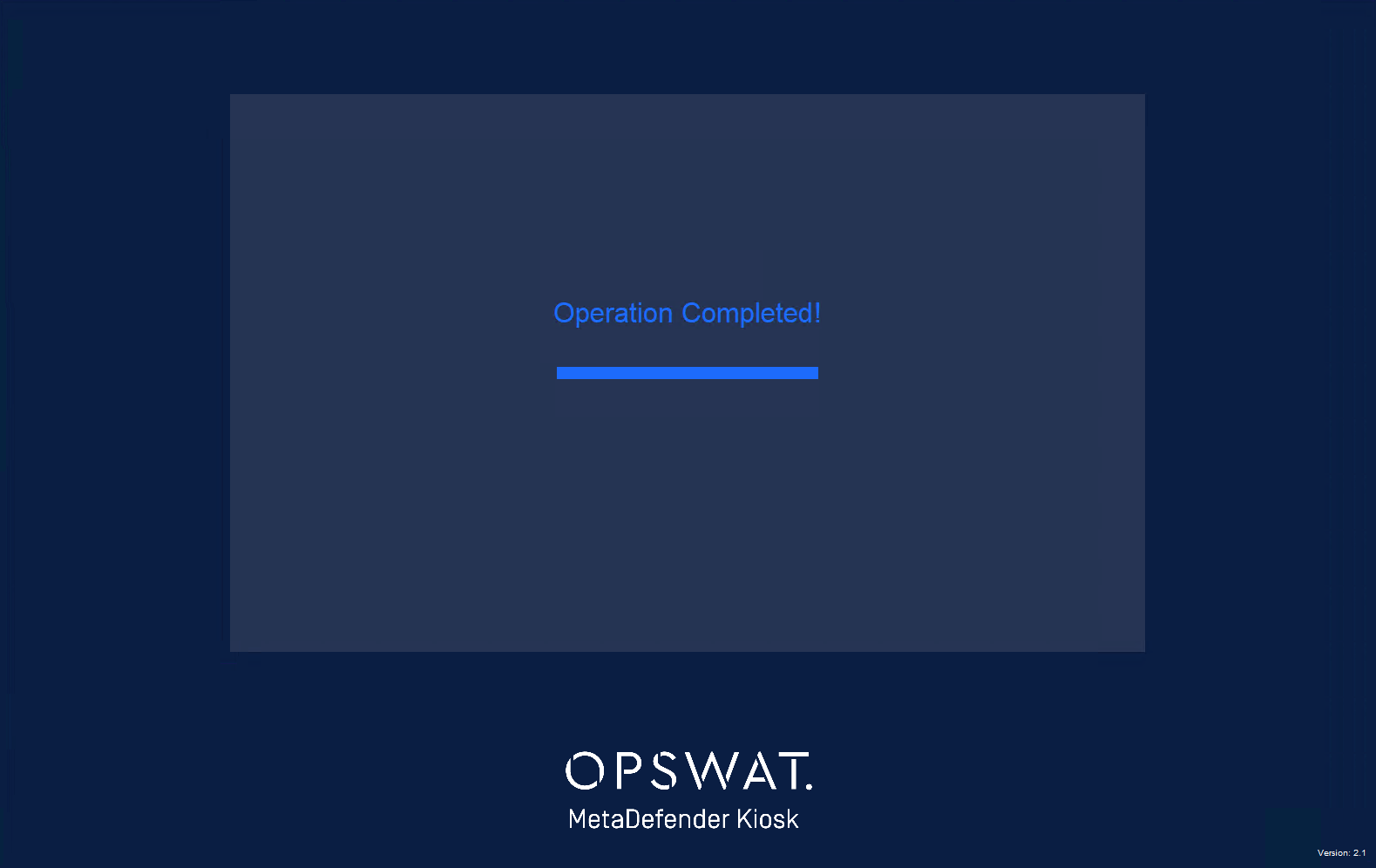

• The process will be processed automatically.

Step 3: Post Deployment Actions

• Change default log-in information for the local windows account:

  • Username: KioskUser
  • Password: Contact the Customer Support to get the default password.

• To activate MetaDefender Core, you will need to run the Setup Wizard on MetaDefender Core, as follows:

  • Go to http://localhost:8008 and follow the Wizard in order to create an account and activate MetaDefender Core.

• To activate MetaDefenderKiosk, you will need to run the Setup Wizard on MetaDefender Kiosk, as follows:

  • Go to http://localhost:8009/ and follow the Wizard in order to create an account and activate MetaDefender Kiosk.

• Connect Kiosk to MetaDefender Core by following the instructions Here.

• Change MD Core Database credential:

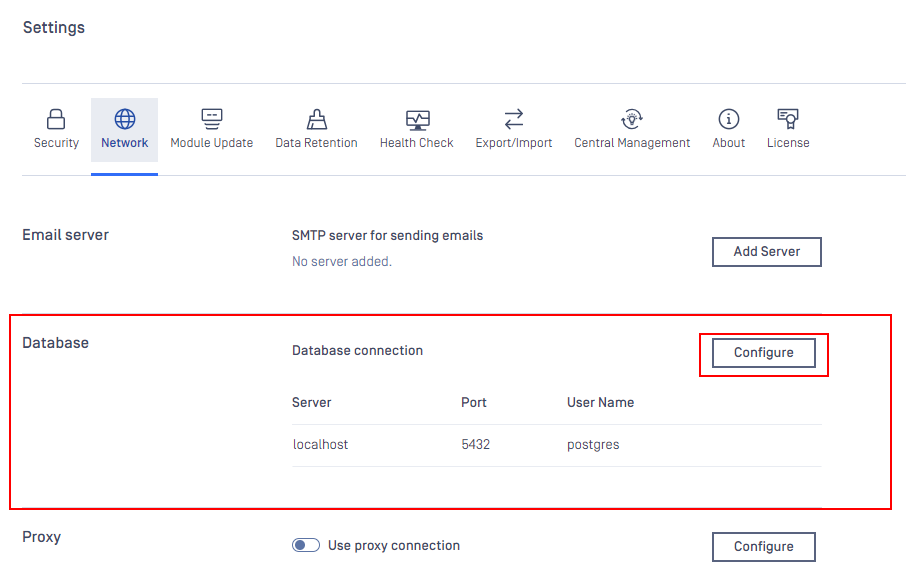

From MD Core console, navigate to Settings > Network > Database > Configure

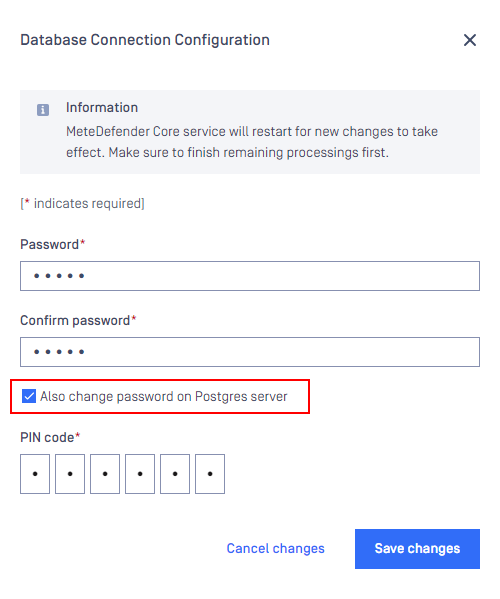

Enter a new password, check the option “Also change password on Postgres Server”
