Sizing and Performance Guidance

Sizing Examples

MetricValueValue
Number of simultaneous users (threads)10100
Data throughput (kB/s)80058070
Request throughput (req/s)97.9128065497.31414474
Total requests35934355002
Total time3673648
CPU Cores2`8
RAM8 GB16 GB

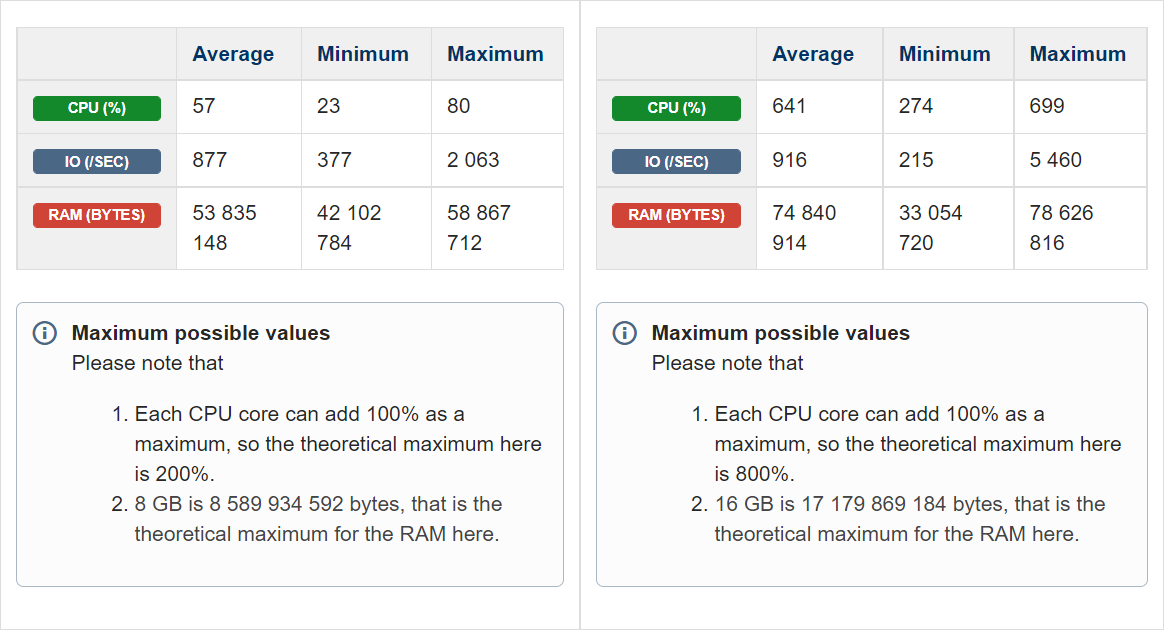

Load values with 10 threads (left) / 100 threads (right)

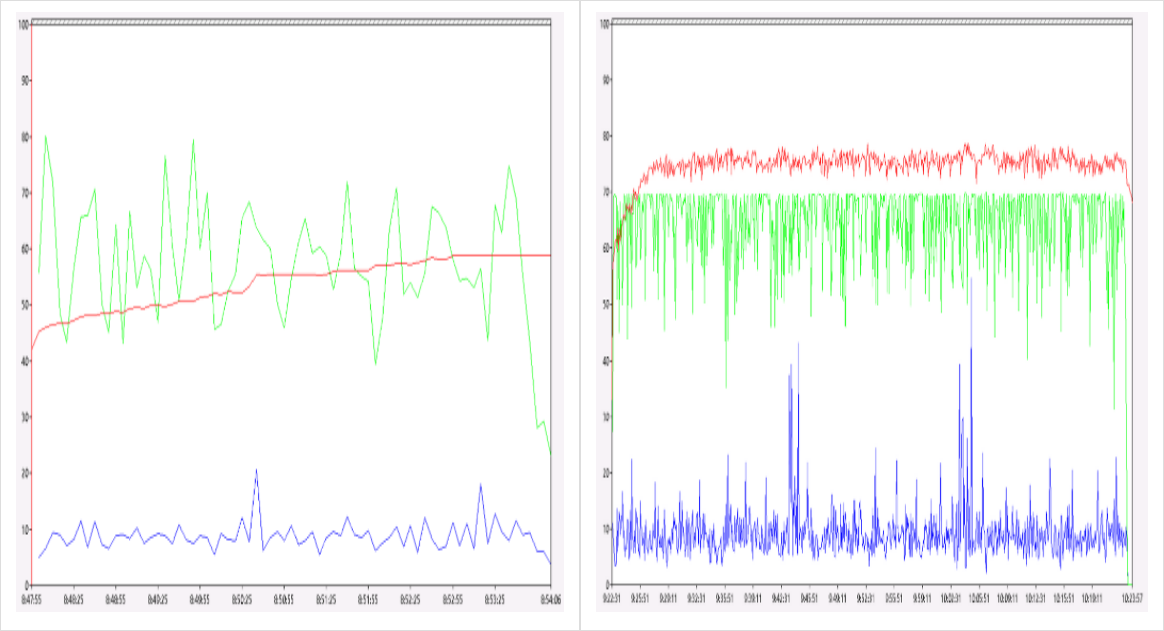

Load Chart with 10 threads (left) / 100 threads (right)

  1. MetaDefender Core connection was disabled to eliminate potential bottleneck caused by Core

  2. 100 ms delay was applied between requests

  3. Each user (thread) requested the whole dataset 10 times

  4. Files were requested in a randomized fashion

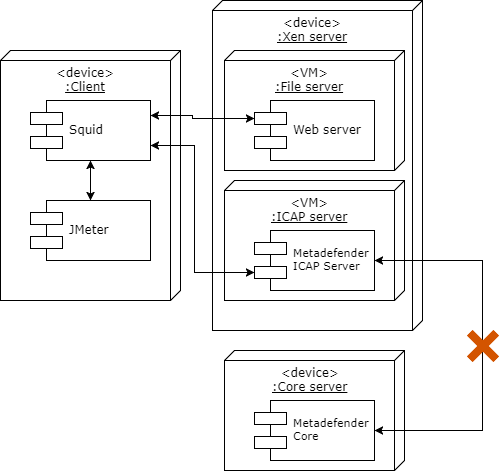

Test Environment

Traffic Mix

File TypePercentage of traffic
Archive (zip)2.8%
Image2.5%
Microsoft Office10.7%
PDF1.5%
Windows executable (exe)24.2%
HTML19.6%
Text37.3%
Total98.6%
Rounding error1.4%
