MetaDefender Core specific inventory properties
Query parameters
Addresses specified in CORE URI ADDRESS may contain optional query parameters for specific use cases.
Syntax
With the optional query parameters the Core URI is formatted as follows:
Valid parameters
| Name | Value | Use case | Example |
|---|---|---|---|
| apikey | 32 characters long API key of an account that belongs to the role the Core side rule is restricted to. | Core side rules may be restricted to roles (for details see 3.6.4. Workflow rule configuration in MetaDefender Core v4 documentation). Email Security can use these rules if:
| URI example with query parameter
https://127.0.0.1:8058?apikey=24a586f3023b4309b65aa1974198d6c6 |
Workflow

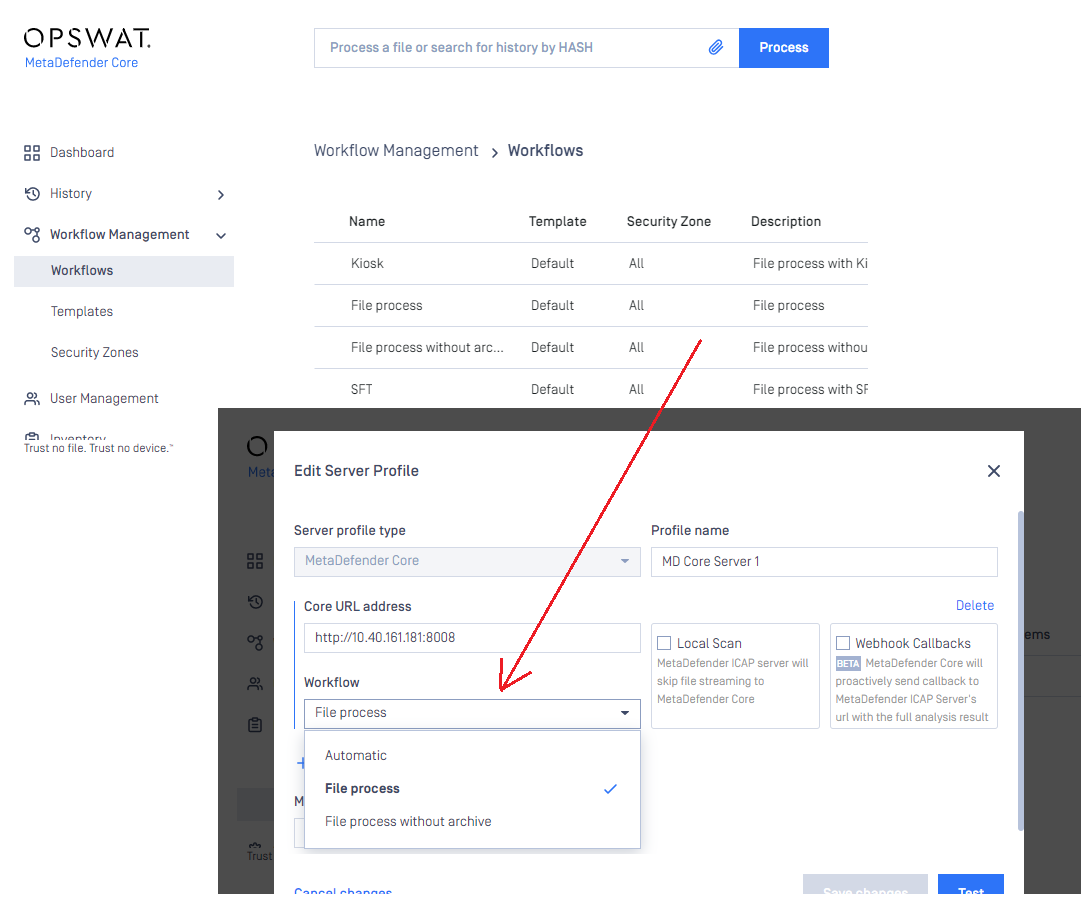

Right after the CORE URI ADDRESS has been specified, and is valid (connection can be established) the WORKFLOW drop-down list is populated with the available workflow on the corresponding MetaDefender Core instance.
The desired workflow may be selected from the configured Core's available rules. Default is Automatic.
Pleaf the security rules on the configured MetaDefender Core under Policy > Security rules are limited to a specific user agent other than mdicapserver or restricted to specific roles other than what is specified in the server URI, then those workflow will not be available in MetaDefender ICAP Server.
MetaDefender ICAP Server identifies itself on MetaDefender Core with the user agent mdicapserver.

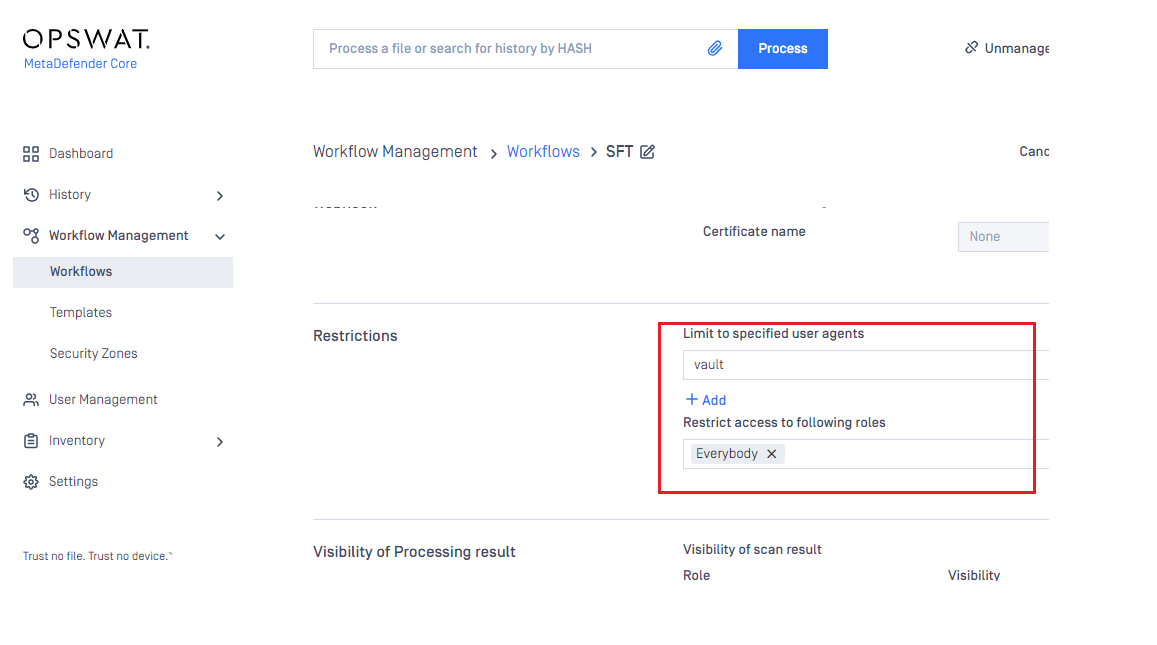

On the example below the Core rule File process with Kiosk and File process with SFT are not listed in ICAP Server as those rules are restricted to user agent kiosk and sft respectively.
Otherwise all unrestricted core rules are in the list.
