Override the processing history

Since ICAP v5.8.0 the Client IP and Username column in processing history are allowed to override by selecting the header for overwritten

Client IP

By default, the Client IP will be get from value of header X-Client-Ip, by some reason the X-Client-IP can not be used then the Client IP can be configured to get from ICAP header or HTTP header in each workflow with 3 kind of encoding::

• None
• Base64
• URL-encoded

to configure the overwritten, go to each workflow -> Advance Tab and select "Override Processing History"

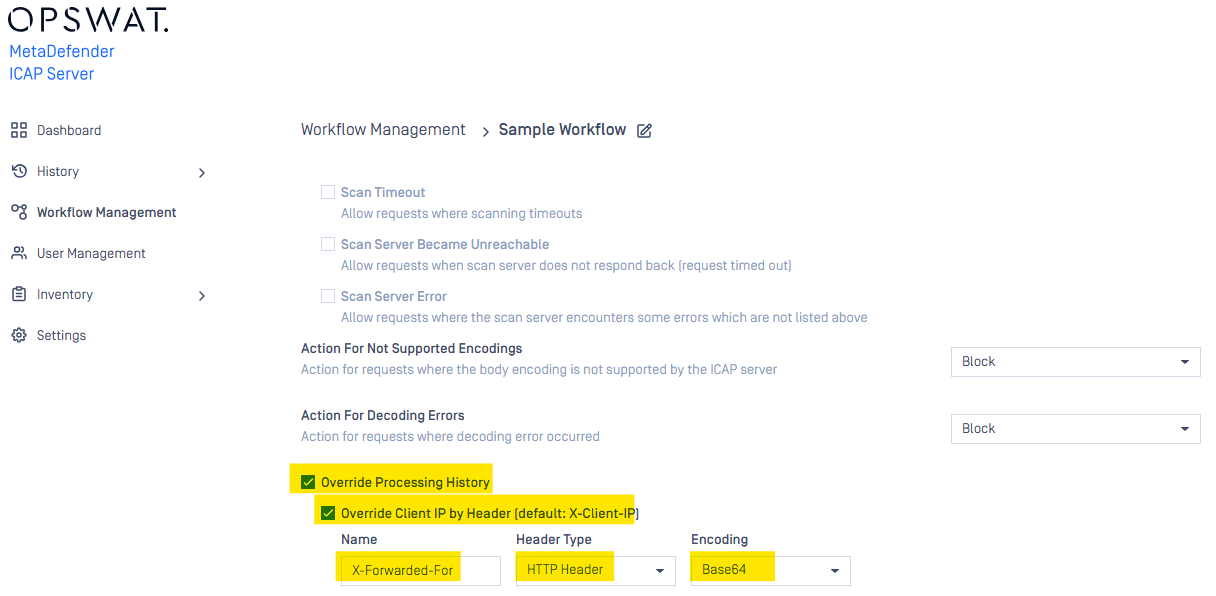

for example, below picture illustrate the override the X-Client-IP by value of X-Forwarded-For HTTP header

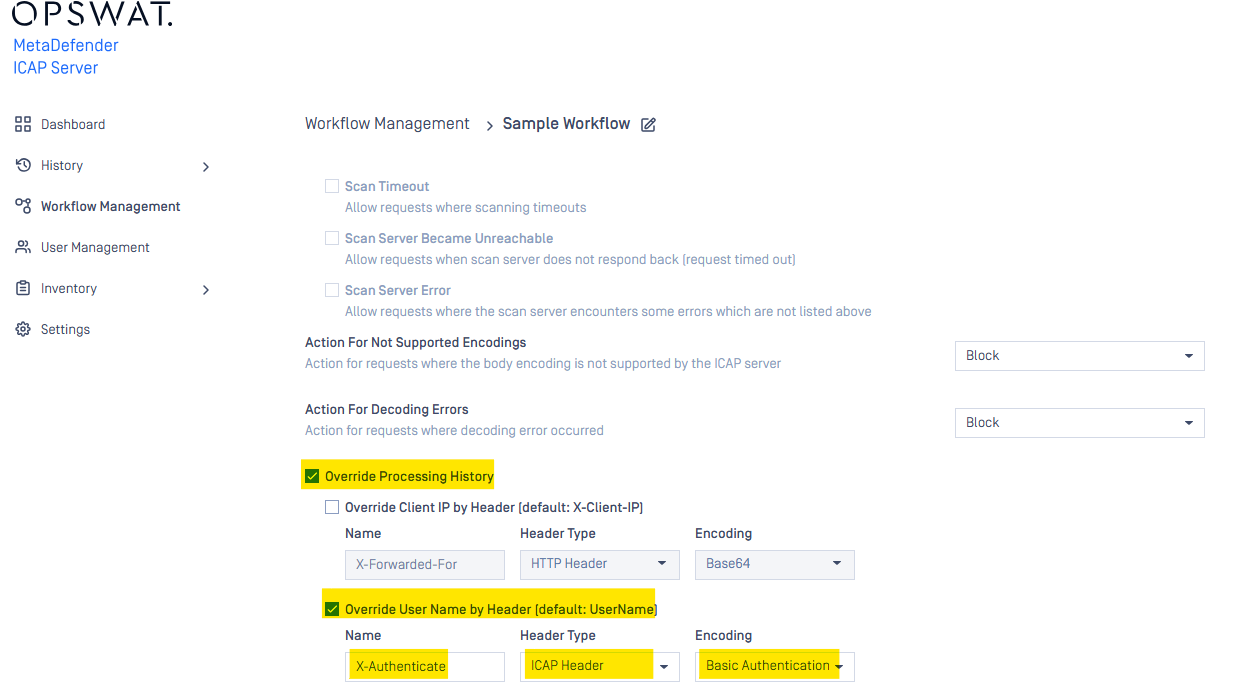

User name

Same as Client IP, the User Name can be overwritten by selected the from any HTTP and ICAP header with 4 kinds of encoding:

• None
• Base64
• URL-encoded
• Basic Authentication (supported since v5.9.0)
