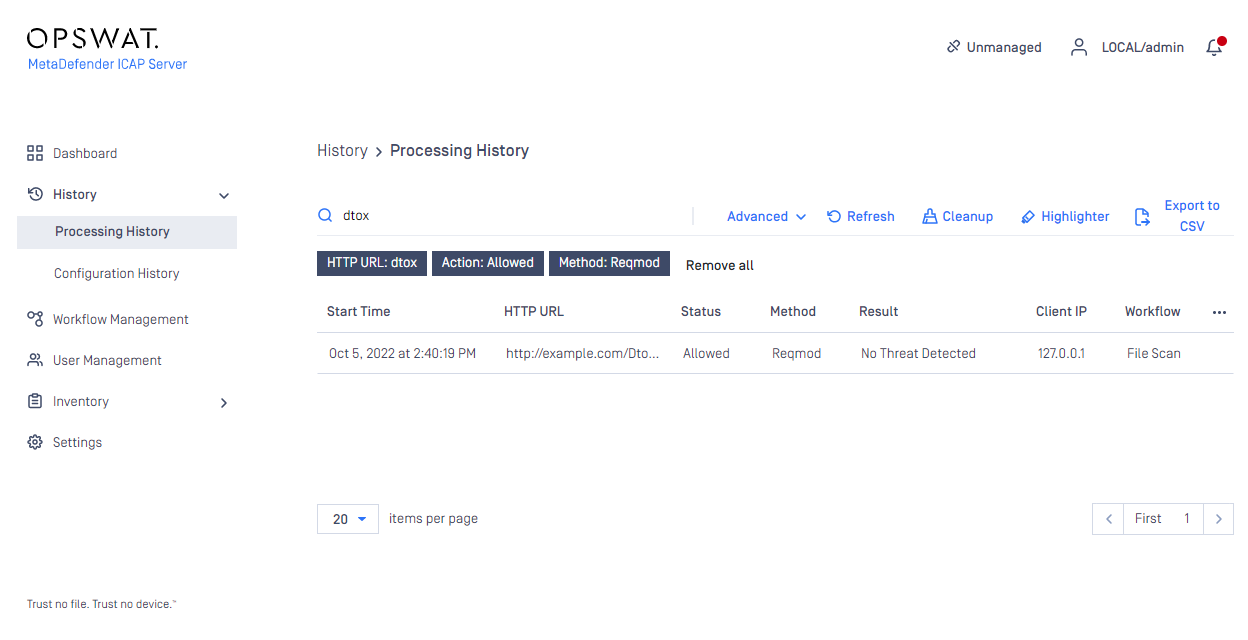

History Search
Filtering columns

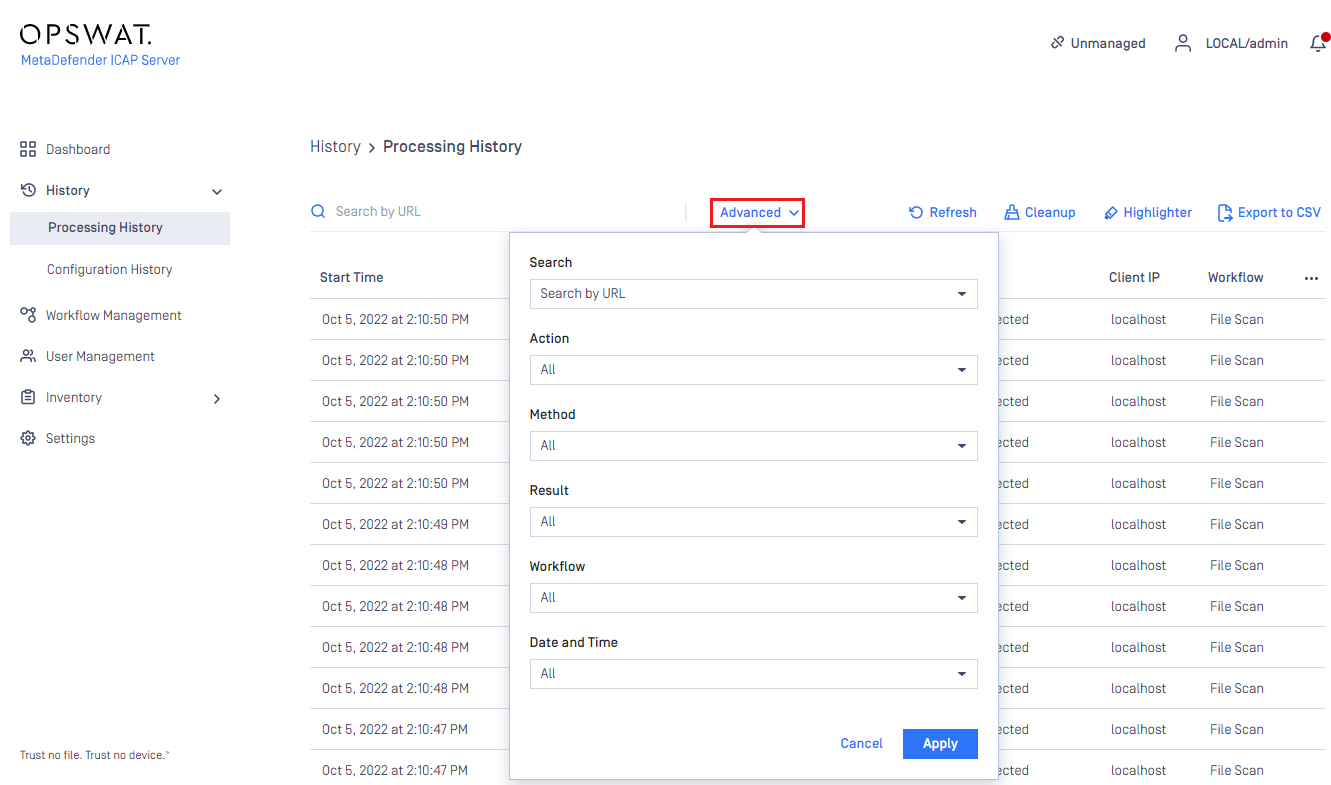

By clicking on the "Advanced" button icon
A new popup will appear with filters for the given rows.
Using these filters you can search for ICAP requests which have to meet multiple criteria e.g. request where the action was BLOCKED and the client IP was 127.0.0.1 at the same time. This indicates that there is AND relation between the filters.

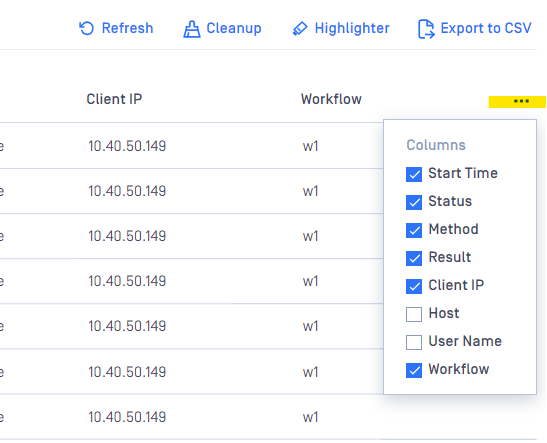

Enable/disable hidden column
be default, below column are hidden, these columns can be configured by check/uncheck the option of each column at the dropdown option.
- User Name: This is for Filemod feature, supported since v5.1.0
- Host: When enable, the Host can be filtered, supported since v5.2.1
Tokenization
When using text filters, like Result you would expect that writing "Ba" in the filter would return every rows with "Bad request" result however this is not the case since the search is based on tokens. If you would like to get the requests with result "Bad request" you would have to write "Ba*" or "Bad" as the filter string.
Value only search
By default it is possible to search for a certain value among the values of all columns.
Example
List
| ID | RESULT | STATUS |
|---|---|---|
| 1 | ALLOWED | BLOCKED |
| 2 | BLOCKED | COMPLETED |
Search results
| Search term | Matching rows |
|---|---|
| BLOCKED | 1, 2 |
Lists with value only search
The following lists in ICAP Server implement value only search:
- Dashboard > Config history
Full text search (FTS)
MetaDefender ICAP Server implements the SQLite MATCH feature of SQLite FTS3 and FTS4 Extensions (see section 3. Full-text Index Queries). In addition to the capabilities the value only search provides, using the MATCH feature makes it possible to search for certain values in certain fields.
From v5.2.0, the SQLite has already replaced by PostgreSQL
Example
List
| ID | RESULT | STATUS |
|---|---|---|
| 1 | ALLOWED | BLOCKED |
| 2 | BLOCKED | COMPLETED |
| 3 | NOT BLOCKED | COMPLETED |
| 4 | BLOWN | BLOCKED |
Search results
| Search term | Matching rows |
|---|---|
| BLOCKED | 1, 2 |
| RESULT:BLOCKED | 1, 3 |
| RESULT:^BLOCKED | 1 |
| RESULT:BLO* | 1, 3, 4 |
| RESULT:^BLO* | 1, 4 |
For a more complete reference of possible search terms see https://www.sqlite.org/fts3.html.
Lists with FTS
The following lists in ICAP Server implement full text search:
- Dashboard > ICAP history
