Single EC2

For a single deployment of MetaDefender in a public subnet. In this example, besides the MetaDefender EC2 instance, additional resources are being generated and set up.

Prerequisites and Requirements

AWS knowledge: This guide assumes familiarity with AWS Services

AWS account: needs permission to create AWS Services listed in Recommended Architecture Single EC2

Tools installation: Terraform

System/OS requirements

For OS, database type, 3rd party dependencies and storage requirements on Windows installations, please refer to the Microsoft Windows Deployments section of the Recommended System Configuration page.

For OS, database type, 3rd party dependencies and storage requirements on Linux installations, please refer to the Linux Deployments section of the Recommended System Configuration page.

Deploy using Terraform

• Locally clone the metadefender-csp repository and go to AWS/single-ec2

git clone git@github.com:OPSWAT/metadefender-csp.git

cd AWS/single-ec2

• Modify terraform.tfvars with the desired options
  • LICENSE_KEY required if wanted to have the instance activated automatically
  • APIKEY_GENERATION=true to have the apikey generated by terraform
  • There is one general section and one section for each product that is supported using this Terraform project

# General variables

​

MD_ENV_NAME             = "metadefender" # Prefix to add to all the resources

MD_REGION               = "eu-central-1" # Region for all the resources

EC2_KEY_NAME            = "" # Key pair to attach to EC2 instances (Optional)

#ACCESS_KEY_ID          = "<ACCESS_KEY_ID>"

#SECRET_ACCESS_KEY      = "<SECRET_ACCESS_KEY>"  # To give access to terraform (Optional, can use other ways to authenticate)

PUBLIC_ENVIRONMENT      = true

APIKEY_GENERATION       = true

​

# MetaDefender Core variables

​

DEPLOY_CORE             = true

MD_VPC_CIDR             = "192.168.0.0/16"  # VPC CIDR where to create the MetaDefender products

CORE_PRODUCT_ID       = "ani6v4vb5z4t87cymrfg3m451" #MetaDefender Core ID in AWS Marketplace || For Windows it is "9s8powksm1cj7fuafdnv0sfj9"

CORE_INSTANCE_TYPE      = "c5.2xlarge"   # Instance type for MetaDefender Core

LICENSE_KEY_CORE        = ""

• In case of wanting to deploy MetaDefender ICAP Server or MetaDefender Storage Security, modify these sections

# MetaDefender ICAP variables

​

DEPLOY_ICAP             = false         # true to deploy ICAP together with Core

ICAP_PRODUCT_ID         = "b1w10ei2pw2vgpdsjw44pbffr" #MetaDefender ICAP LINUX ID in AWS Marketplace

ICAP_INSTANCE_TYPE      = "c5.2xlarge"   # Instance type for MetaDefender Storage Security

LICENSE_KEY_ICAP        = ""

​

# MetaDefender Storage Security variables

​

DEPLOY_MDSS             = false   # true to deploy MetaDefender Storage Security together with Core

MDSS_PRODUCT_ID         = "3mup1qubt6hwmup405eljau0k" # MetaDefender Storage Security LINUX ID in AWS Marketplace

MDSS_INSTANCE_TYPE      = "c5.2xlarge"   # Instance type for MetaDefender Storage Security

​

DEPLOY_MDSS_DOCUMENTDB  = false  # true to deploy  MetaDefender Storage Security with a managed instance of Amazon DocumentDB

MDSS_DOCUMENTDB_INSTANCE_CLASS = "db.r5.large"

DEPLOY_MDSS_ELASTICACHE = false  # true to deploy  MetaDefender Storage Security with a managed instance of Elasticache Redis

MDSS_ELASTICACHE_NODE_TYPE = "cache.m5.large"

• Run terraform init and apply. Check the resource to be created, after that enter "y"

terraform init

terraform apply

Deploy using AWS Console

Select MetaDefender Core AMI

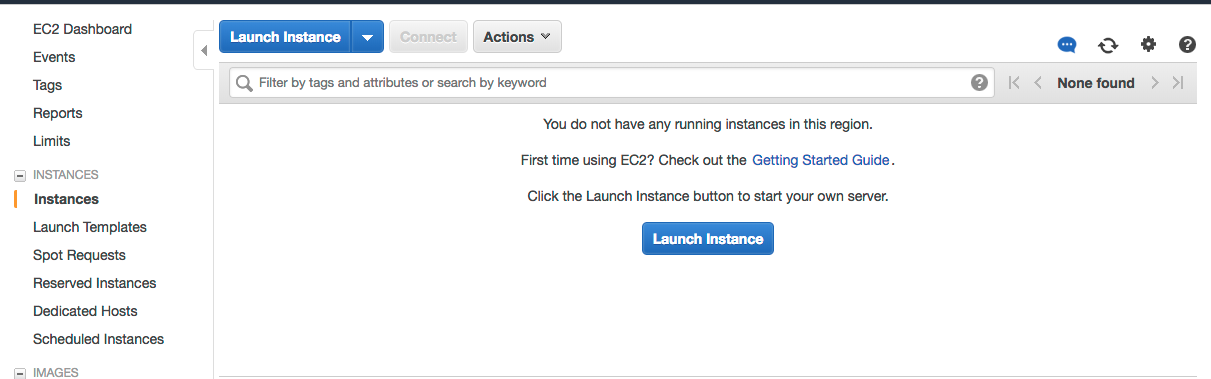

• Go to the EC2 Management Console in AWS and select Launch Instance

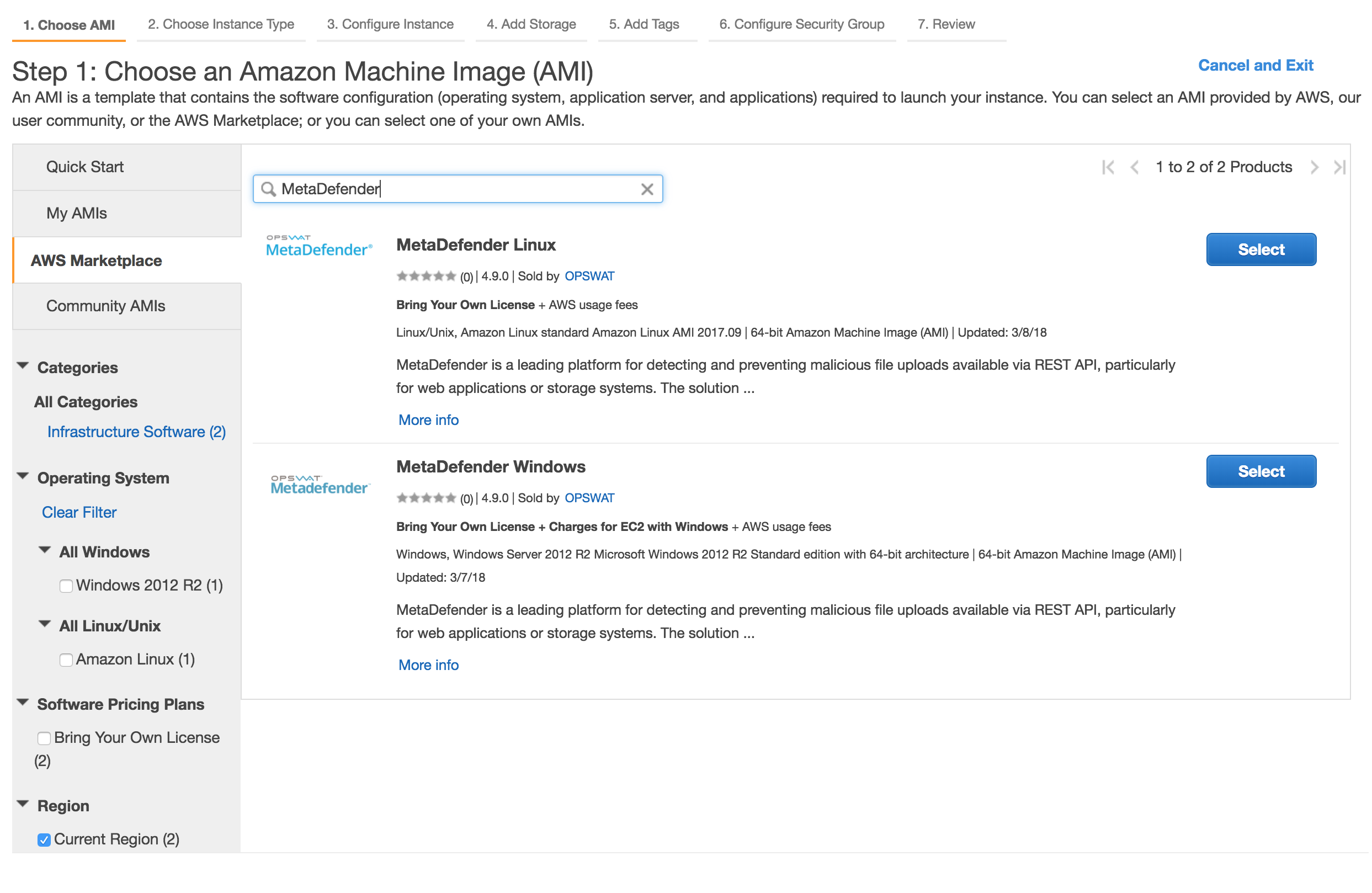

• Select the desired MetaDefender, based on the OS support:

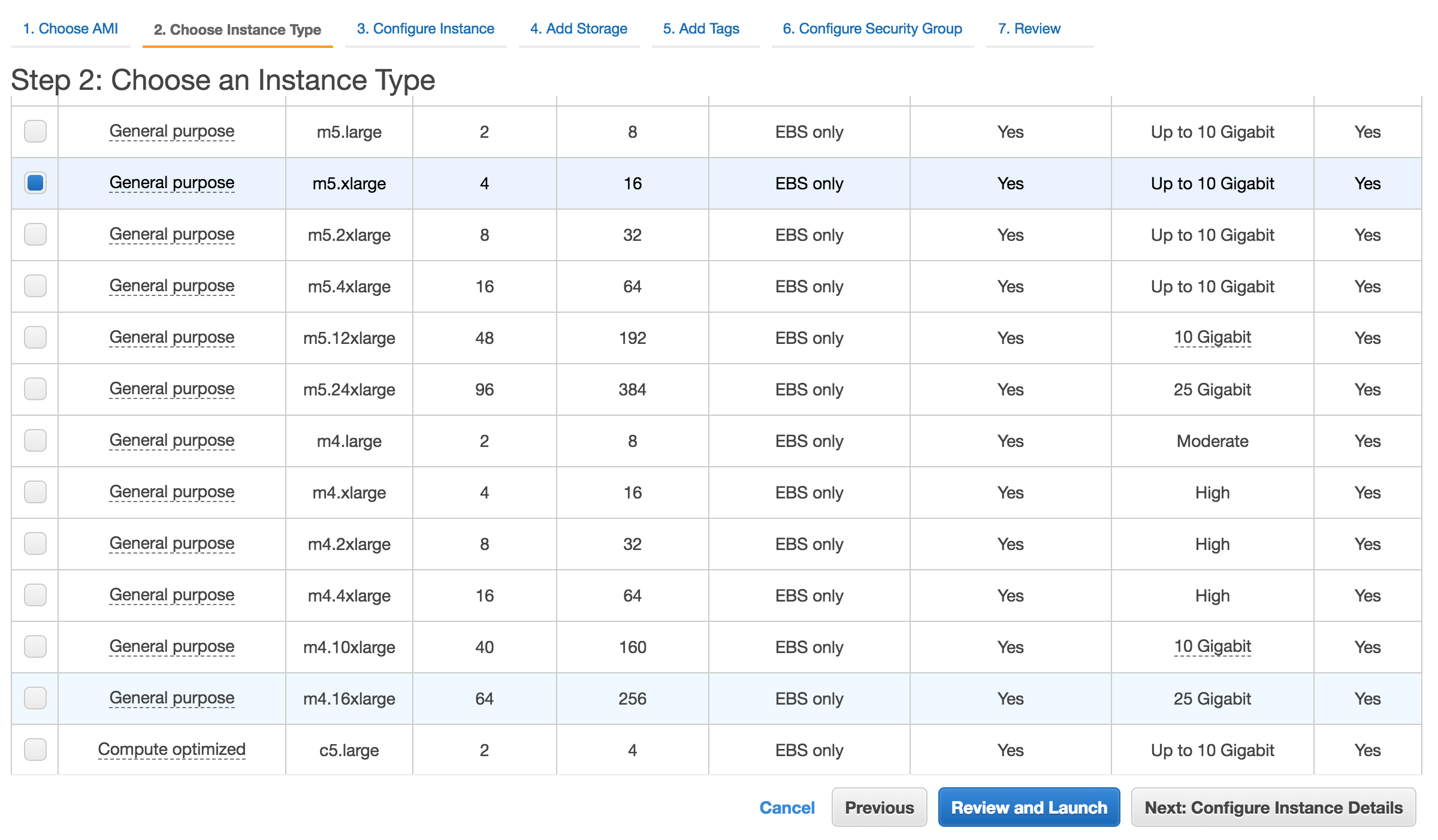

• Choose the Instance type

Please review MetaDefender's system requirements (OS and hardware requirements) before choosing the desired AMI and instance type.

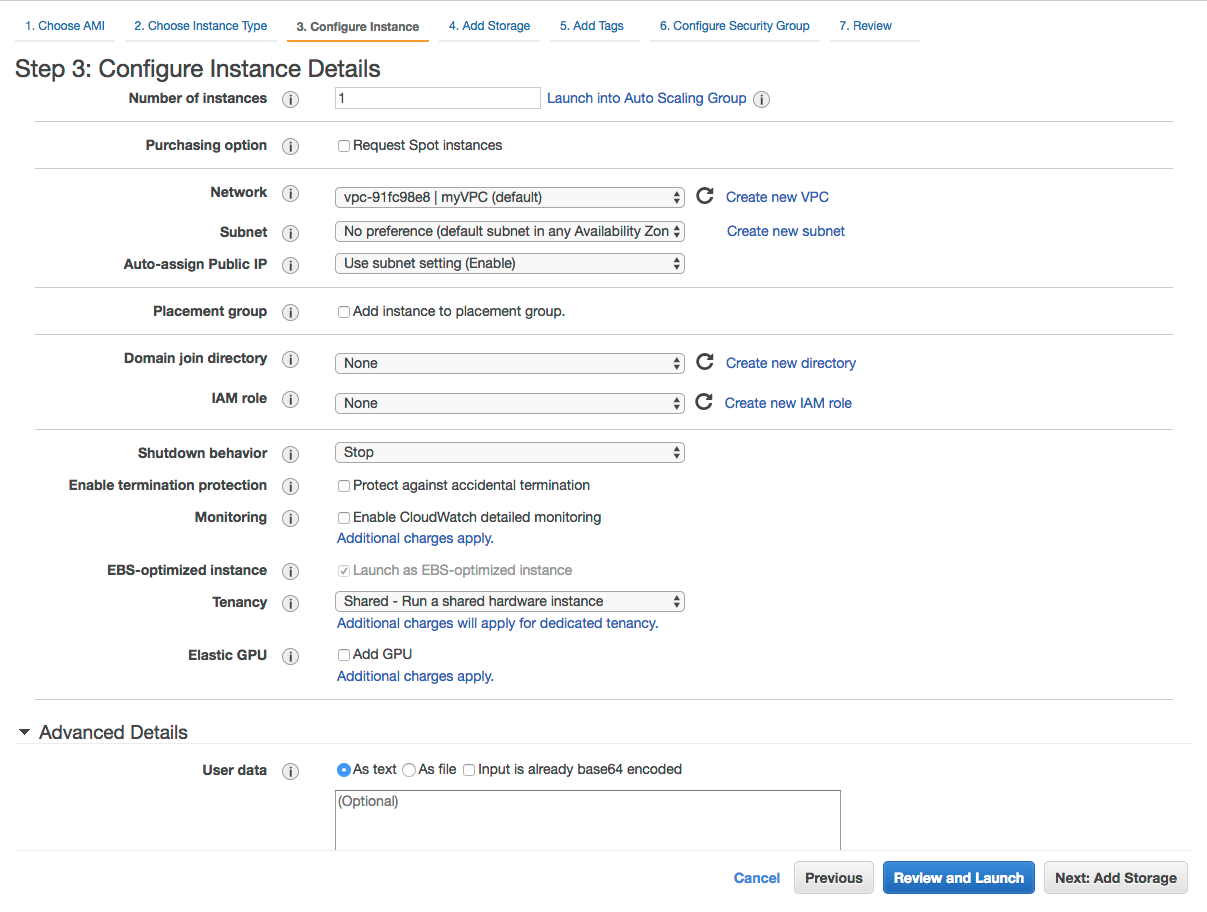

Networking for EC2

• Select the desired VPC and subnet you would like to have MetaDefender deployed.

Depending on the deployment model, the recommendation would be to deploy MetaDefender in a private subnet, with no Internet Connection.

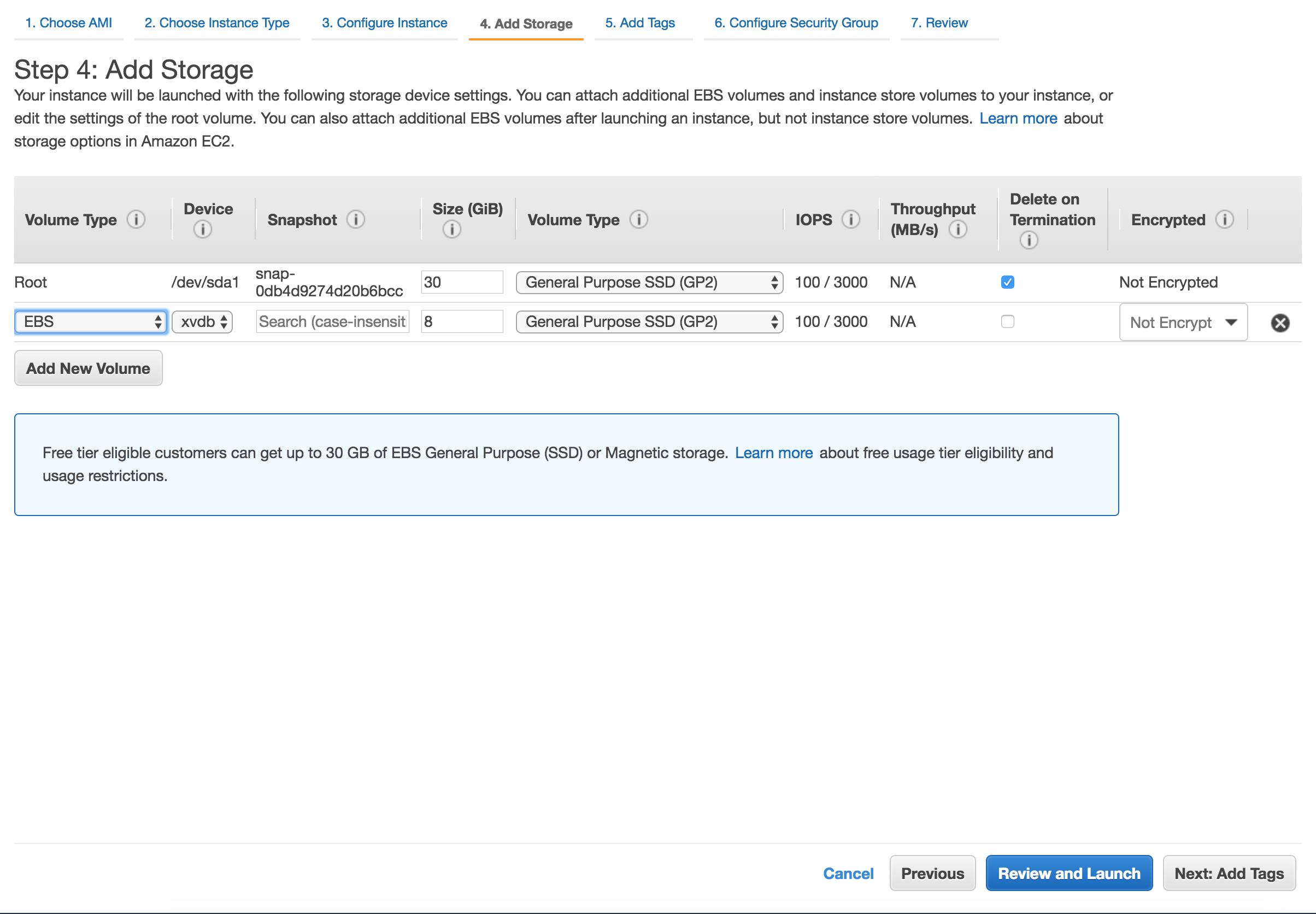

Storage configuration

Storage step can be skipped

In general there's no need for additional storage by MetaDefender. However, there are 2 situations where additional local storage might be required:

• MetaDefender will process large files or a high volume of files which submitted in MetaDefender's queue will need over 10GB files storage
• MetaDefender is configured to store files in the Quarantine section which will eventually fill the entire root volume.

In case quarantining the files in the MetaDefender instance or analyzing high volumes of files is a requirement, please consider adding an EBS volume.

Security Groups configuration

There are 2 rules that are needed to be opened during the installation phase, after which only one rule should remain:

• Custom TCP: 8008

  • MetaDefender exposes it's REST API by default to port 8008. However this port can be changed during the installation phase or updated during it's lifetime.

• RDP / SSH

  • In order to install MetaDefender on Windows add access for RDP and for Linux add support for SSH
    • Highly recommended would be not to allow traffic to RDP or SSH from anywhere, but to limit to your IP address

Launch the instance

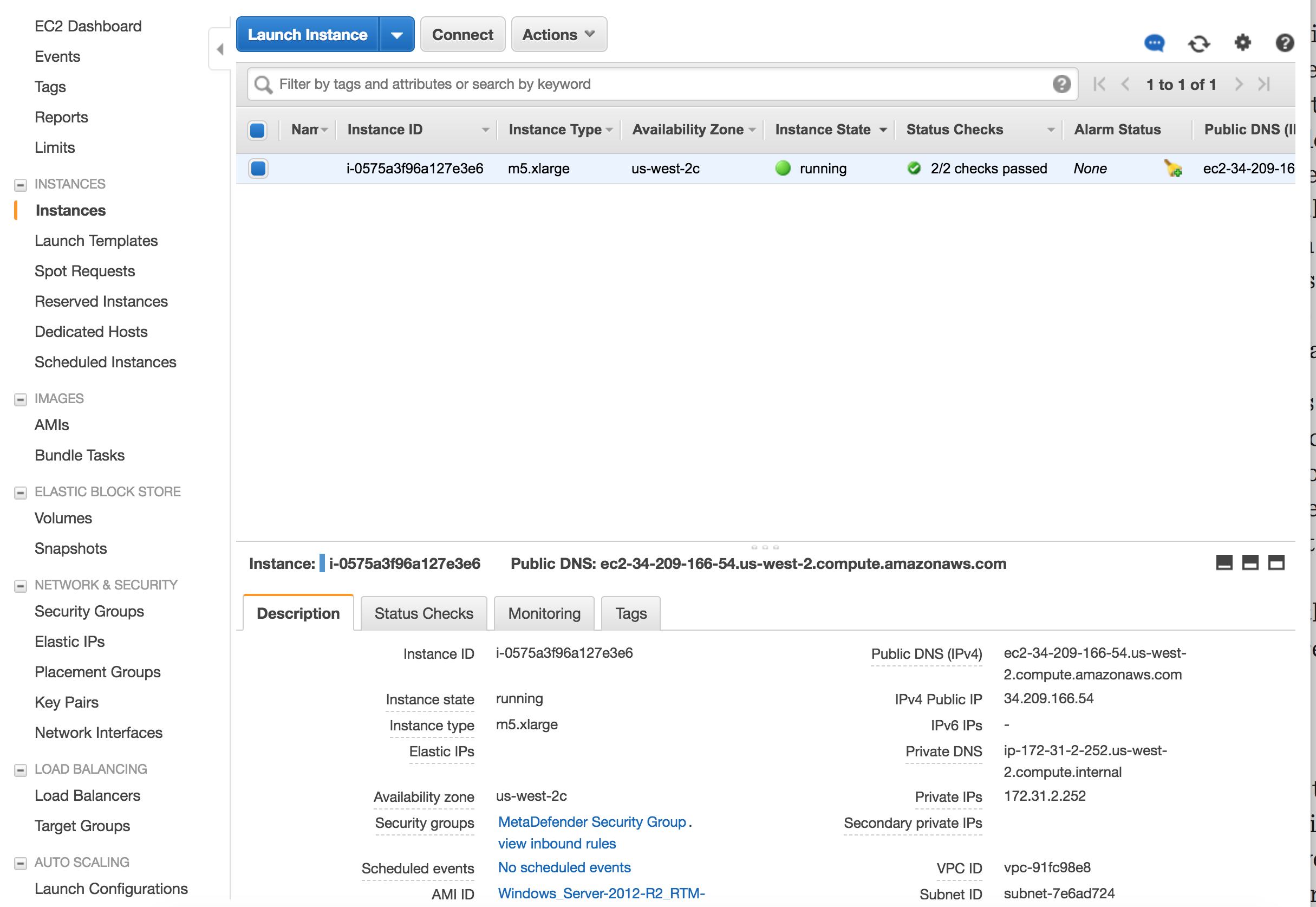

After you review the settings, hit Launch. In a few minutes the instance should become available

Licensing Automation

To automate the activation and deactivation of MetaDefender Core the marketplace image contains an automation that activate the product on start and deactivate the product on graceful stop/termination.

Customize OPSWAT MetaDefender AMI from marketplace

• Default username and password is admin/<instance-ID>

  • “admin” is an unacceptable password. Whenever the end-user changes the password to “admin”, it will automatically change the password to <instance-ID> after the Instance is rebooted.

• To create custom AMI from OPSWAT AMI, some mandatory things need to be noted before converting:

  1. ( Required ) Deactivate the MetaDefender Core license in the EC2 instance from where the new AMI will be created.
  2. ( Optional ) Change MD Core password.
     • If the end-user changes the password to “admin”, their default password after creating a custom AMI will be <instance-ID>
     • If the end-user does NOT change the Core UI password, it will be the default password in the original instance (instance-id) for all the new instances that uses the custom AMI.
