PingOne IdP MFA Setup Guide

How does it work?

In this setup guide, the authentication process will have 3 steps:

Step 1: User enters the account credential
Step 2: User enters the authentication code from the Authenticator App
Step 3: Run a device posture check on the user's device

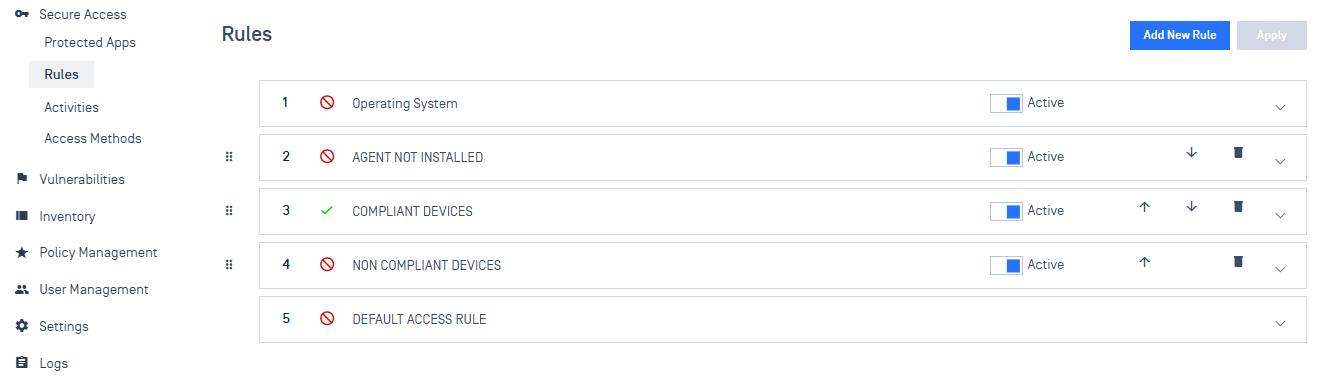

Administrators also can customize the Secure Access rules.

Notes: The IdP MFA method will apply to all applications on IT Access Secure Access Rules. To apply IdP MFA for specific applications, you must assign applications from Ping Console. More detail is in step "15. Assign Policy to Selected Applications"

Setup guide

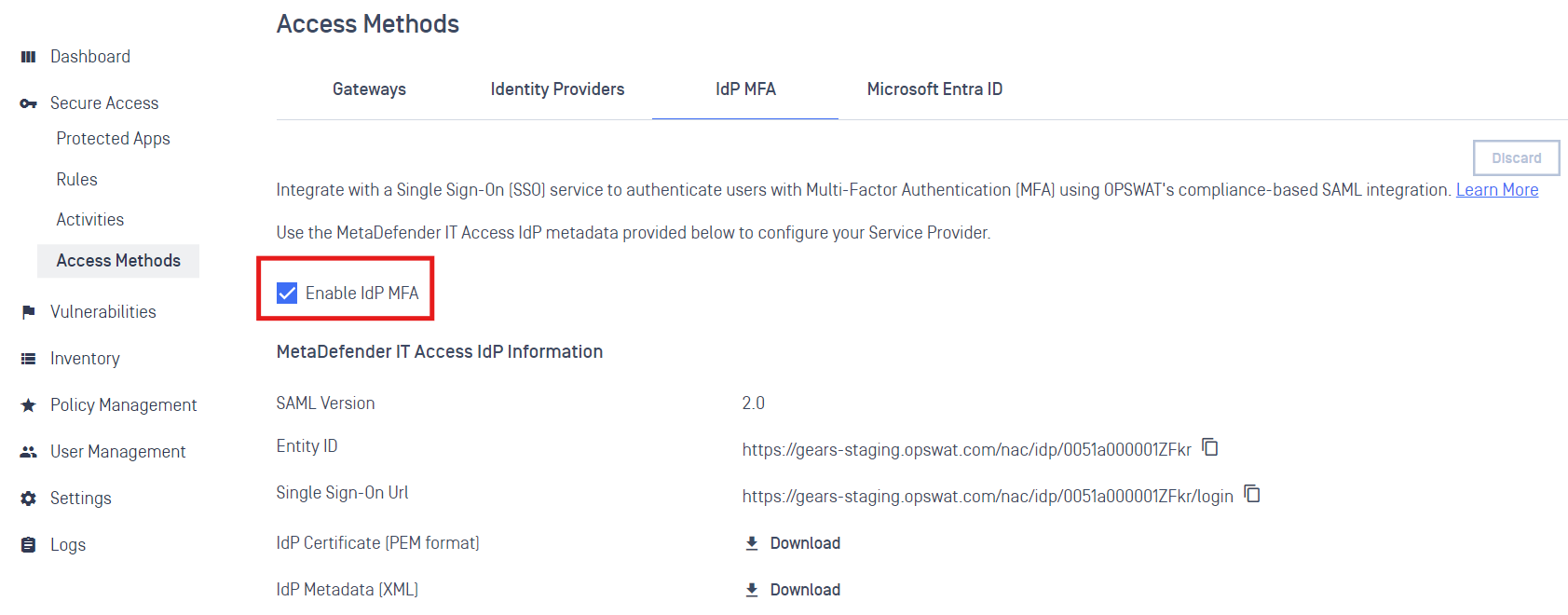

In My OPSWAT Central Management, navigate to Secure Access > Access Methods > IdP MFA, and Enable IdP MFA

Then download IdP Metadata (XML) file
In PingIdentity, go to “Integrations > External Idps“, then click on Add Provider
Select SAML, and filling information
Choose Signing Certificate and check on "Sign Authn Request"
Import Metadata downloaded in Step 2, and select "HTTP POST" as SSO Binding
Click on Save & Finish
Enabled the new IDP
From the new created IDP, click on the pencil icon, then click on IDP Configuration tab and click to download the metadata
Upload the Ping Metadata in My OPSWAT Central Management and Save
In PingIdentity, go to Authentication > Authentication, click on Add Policy button and fill information
Add Login as first step then click on Add step for next step
(Optional) Select Multi-factor Authentication as second step and click on Add step
Select External Identity Provider then select the new IDP for External Identity Provider then check on the box Pass user context to provider

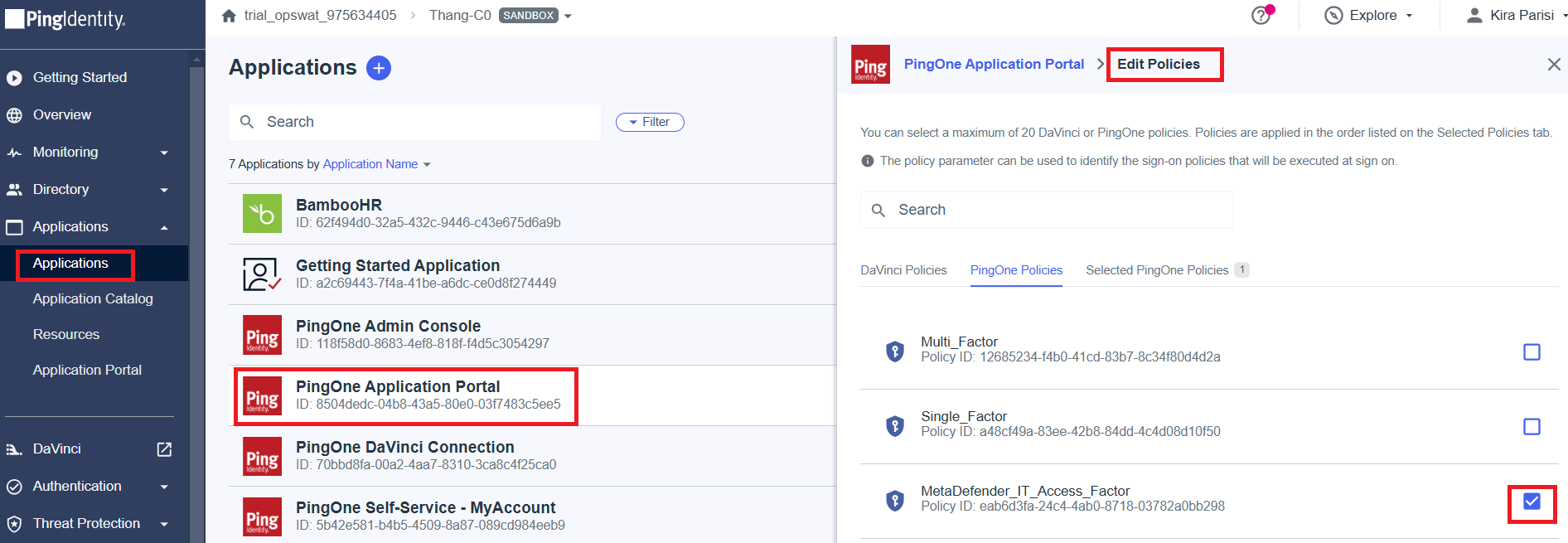

Assign Policy to Selected Applications.
