Configuration
The Sandbox Engine offers two integration modes:
- Inline: working as a part of MetaDefender Core processing workflow (real-time processing). Allowing users to block entire processing based on MetaDefender Sandbox engine outcome and decision.
- Out of band: working as a part of MetaDefender Core quarantine (post-investigation processing). Providing additional option to analyze quarantined items along with the existing Threat Intelligence technology.
Global configuration
Go to Inventory > Modules and select the Sandbox module
Use your OPSWAT Reputation secret to further enhance your Sandbox Engine capabilities.
The global configuration is used by the out of band MetaDefender Core quarantine process and also as the default setting for new workflow configurations.

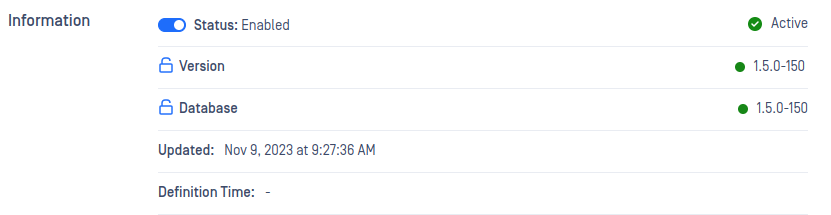

Engine details
See details like engine version and status.
Configuration
Log level
Configure the log level of the Sandbox Engine. In case of issues a lower log level (Debug) might help the support team.

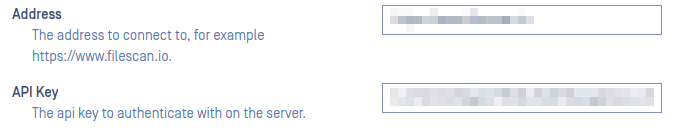

Remote server address
Configure the address and secret of your standalone MetaDefender Sandbox instance.
Only available for the Remote Sandbox Engine
OPSWAT Reputation configuration
Configure your OPSWAT Reputation secret to use the OPSWAT Reputation OSINT scan task.
Only available for the Embedded Sandbox Engine. For the Remote Sandbox Engine the secret must be configured for the standalone MetaDefender Sandbox instance.
OpenAI configuration
Configure your OpenAI secret and preferred ChatGPT model for the Executive Summary feature. For more details see the workflow configuration section below on this page.
Only available for the Embedded Sandbox Engine
Default Analysis configuration
The global configuration stores the default configuration settings for default workflow and quarantine processing. For more details see the workflow configuration section below on this page.
Workflow configuration
Go to Workflow Management > Workflows, select your workflow and select the Sandbox module
Customize your workflows based on your specific usage scenario to enhance performance. For example turn off file types and update engine results filtering.
Setup several workflows tailored to different use cases, if required.
Activate Rapid mode when there's a need for higher throughput.

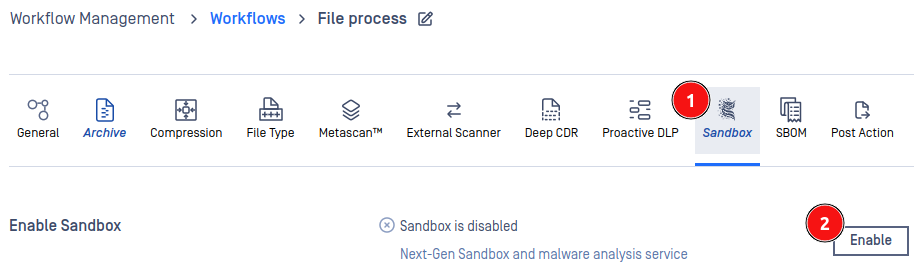

Enable the Sandbox Engine in your workflow
Filetype filtering
Configure the Sandbox Engine to run only for the selected file types. All the supported file types are selected by default.
It's not recommended to choose file types that aren't included in the default configuration.
Engine result filtering
Configure the Sandbox Engine to run conditionally based on Reputation engine results, Metascan AV engine results or Deep CDR sanitization results.
Advanced options
Deep CDR filtering
Configure the Sandbox Engine to run conditionally based on Active Content(s) found with Deep CDR processing.
Scan timeout
Configure a timeout value in seconds which will be applied to each scan.
A high timeout value might significantly degrade engine performance

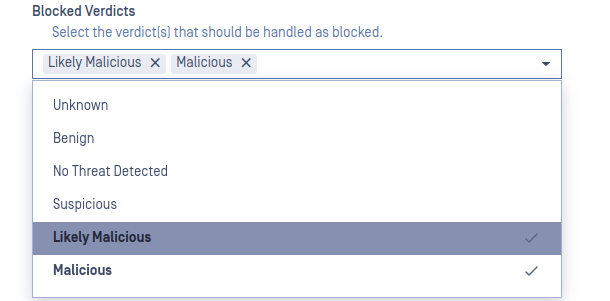

Blocked verdicts
MetaDefender Core will block files if the Sandbox Engine produces a blocked verdict.
Scan tasks
Configure which tasks should be executed. Different configuration settings available for the Embedded and Remote Sandbox Engine.

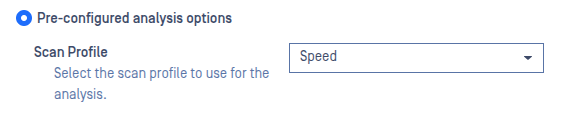

Pre-configured analysis options
The following profiles are available in both Engines:
- Speed: This mode focuses on generating a final Verdict within the shortest time. It is likely that the list of IOCs is only partially complete.
- Analysis: This mode prioritizes extracting the most amount of IOCs over scan time.
Custom analysis options

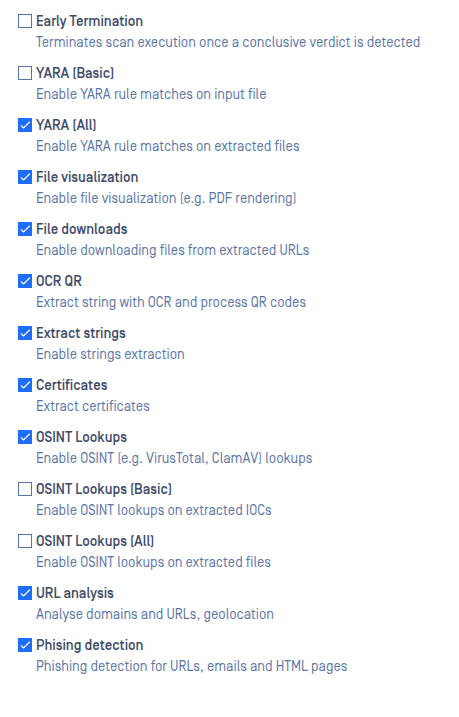

Embedded Engine

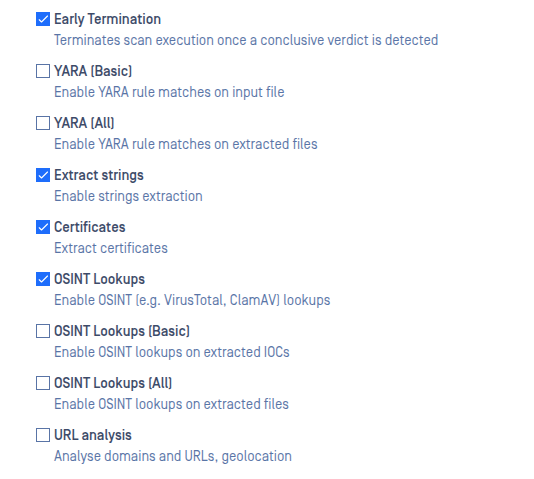

Remote Engine
The following options shouldn't be modified for the Remote Sandbox Engine if the filescan.io community site is used or Advanced scanning option is not enabled for the user.

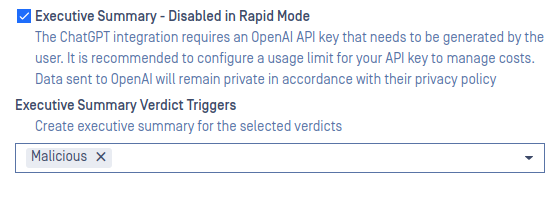

Executive summary
Create an executive summary for the selected verdicts, powered by ChatGPT.
