Captive Portal Configuration

What is the Captive Portal?

The captive portal is a web page that MetaDefender NAC shows to a device before it is granted full access to your network. When a device connects but is not yet authenticated or not compliant, your network equipment redirects its web traffic to NAC Edge, which displays a remediation page — for example, a sign-in page, an agent-install prompt, or a block message. After the user completes the required action, the device is re-evaluated and given its intended level of access.

The captive portal works together with three other parts of RADIUS NAC:

  • Access Profiles define the limited network access a device has while it is on the captive portal.

  • Rules decide which devices are sent to the captive portal and which remediation page they see.

  • Remediation pages are the actual pages the user sees (Block, MDE required, Guest, SSO, SSO and Guest). See Rules — Showing a Remediation Page.

How It Works

  1. A device connects to the network and authenticates through RADIUS NAC.

  2. The device is evaluated against your Rules (top to bottom). The first rule that matches and assigns a Captive Portal access profile places the device on the captive portal.

  3. Your network vendor (switch, controller, or router) redirects the device's web traffic to NAC Edge.

  4. NAC Edge shows the remediation page selected by that rule's Show remediation page action. If no page is set, the Block page is shown by default.

  5. The user completes the required action — installs the agent, signs in as a guest, authenticates with SSO, and so on.

  6. NAC re-evaluates the device and applies the access profile from the rule it now matches.

Prerequisites

Before configuring the captive portal, make sure you have:

  • A configured and connected NAC Edge — note its IP address; you will need it for the redirect configuration.

  • An Access Profile you can assign to captive-portal devices (created in RADIUS NAC → Configuration → Access Profiles).

  • A network vendor that supports either DNAT redirect (for example, Aruba) or VLAN redirect (for example, Cisco).

  • For VLAN-based redirect: a Layer 3 router or switch with ACL (Access Control List) and Policy Routing capabilities is required.

Step 1: Create a Captive Portal Access Profile

  1. Go to RADIUS NAC → Configuration → Access Profiles.

  2. Create an Access Profile to be used for the captive portal.

Step 2: Create a Rule that Assigns the Captive Portal Profile

  1. Go to RADIUS NAC → Rules and click Add New Rule (see Rules for full details on conditions and actions).

  2. Under Apply these actions, Assign the Captive Portal access profile you created in Step 1.

  3. Add a Show remediation page action and select the page users should see (see Step 4).

  4. Click Apply to save.

Step 3: Configure Redirect on Your Network Vendor

How you redirect captive-portal traffic to NAC Edge depends on whether your vendor supports DNAT or VLAN redirect.

Option A — DNAT-supported vendors (example: Aruba)

  1. Create an Access Profile for the captive portal in the Access Profiles tab (Step 1).

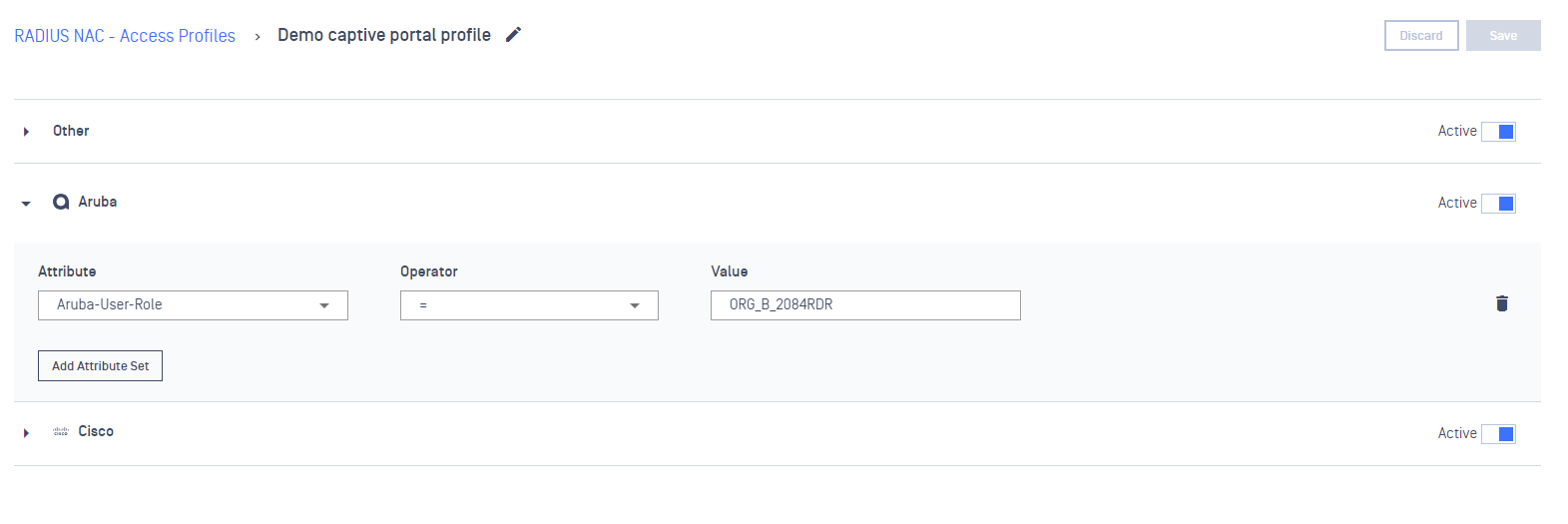

  2. In the Aruba dropdown, set the Aruba-User-Role attribute to your redirect role — for example, ORG_B_2084RDR.

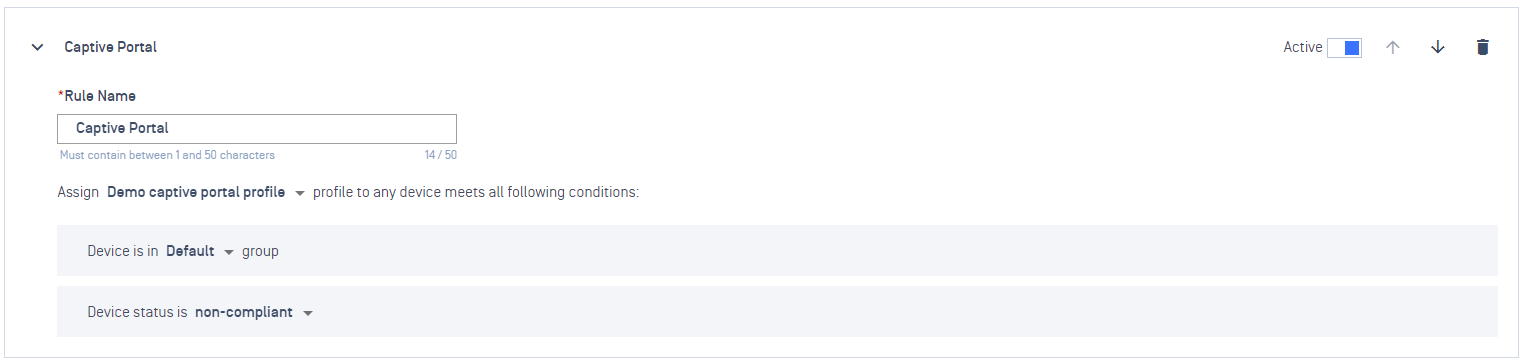

  1. Go to the Rules tab, add a rule, and assign it to the Captive Portal profile created above (Step 2).

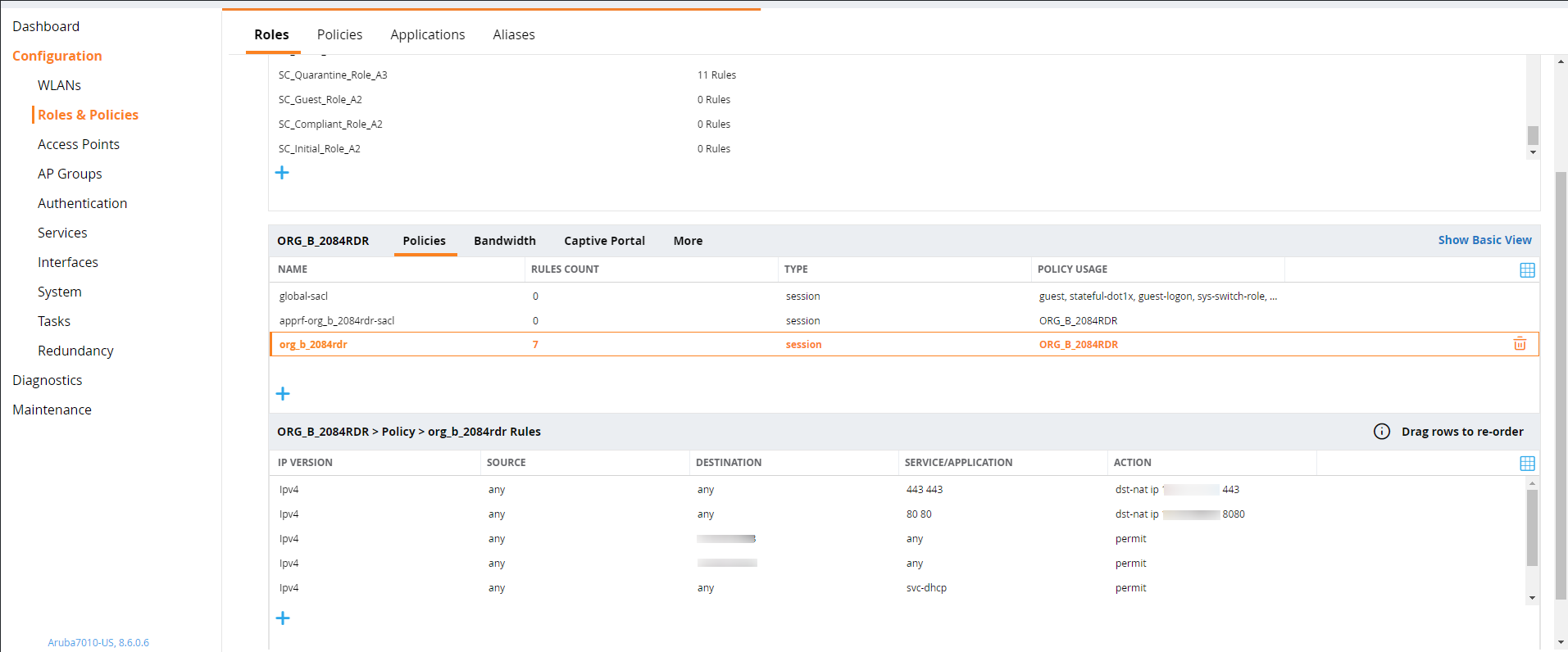

  1. On the network vendor console (Aruba in this example), create an ACL (Access Control List) to forward traffic to NAC Edge.

  1. Create an Access Profile for the captive portal in the Access Profiles tab (Step 1).

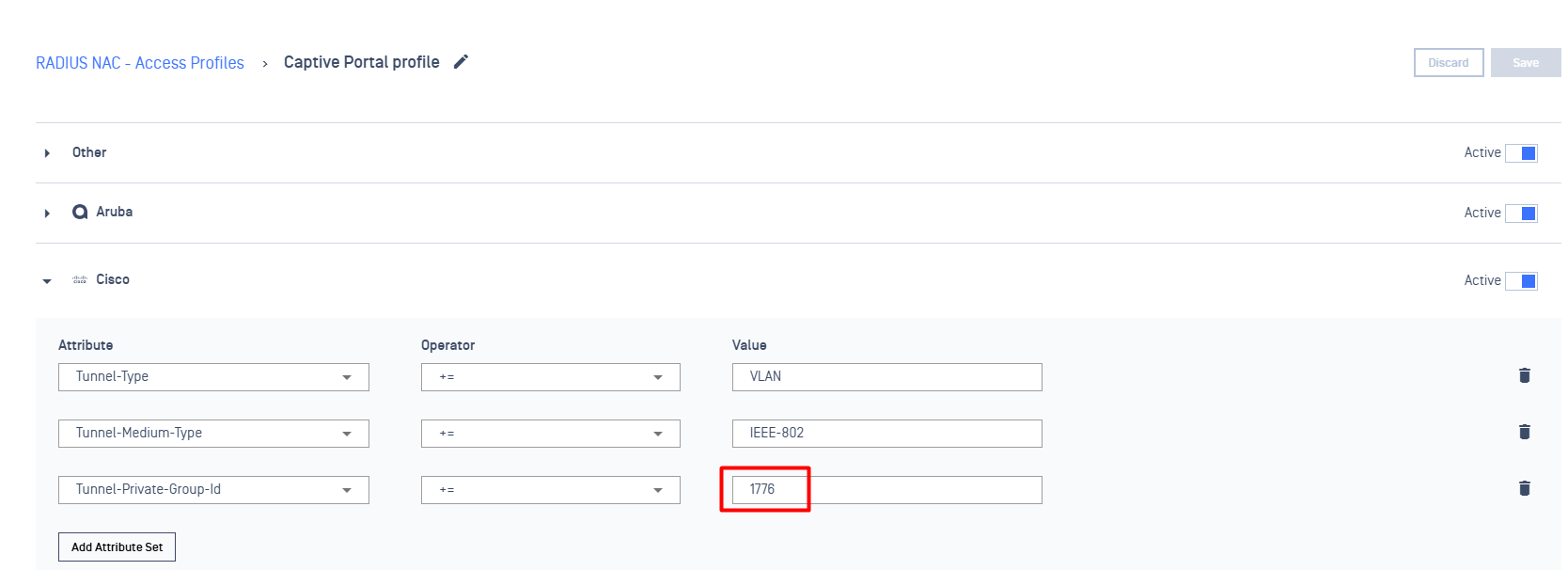

  2. In the Cisco dropdown, set the Tunnel-Private-Group-Id attribute to your quarantine VLAN ID — for example, 1776.

  1. Configure the redirect for the VLAN.

Pre-condition

A Layer 3 router or switch with ACL (Access Control List) and Policy Routing capabilities is required.

Apply an ACL and policy route-map on the router so that captive-portal (quarantine) traffic is forwarded to NAC Edge, while essential services (DNS, DHCP) are allowed through directly:

ip access-list extended Non_Redirect # create IP access list (extended) permit udp any any eq domain # allow DNS permit udp any any eq bootps # allow DHCP route-map CloudNac_Quarantine deny 10 # create route map match ip address Non_Redirect route-map CloudNac_Quarantine permit 20 set ip next-hop 10.40.177.85 # IP address of NAC Edge interface GigabitEthernet0/0.1796 description Wireless Quarantine Subnet encapsulation dot1Q 1796 ip address 10.40.179.65 255.255.255.240 ip helper-address 10.40.177.94 # DHCP server outside of this VLAN no ip route-cache ip policy route-map CloudNac_Quarantine # apply route map CloudNac_Quarantine

Values to change for your environment:

  • 10.40.177.85 — the IP address of your NAC Edge (set ip next-hop).

  • 1796 (the VLAN ID in encapsulation dot1Q and the sub-interface) — your quarantine VLAN. This must match the Tunnel-Private-Group-Id value you set on the vendor in Step 3B.2.

  • 10.40.179.65 255.255.255.240 — the gateway IP and mask for the quarantine VLAN.

  • 10.40.177.94 — your DHCP server address (ip helper-address).

  • GigabitEthernet0/0.1796 — the sub-interface name for your quarantine VLAN; adjust to match your hardware.

Info

The Non_Redirect ACL permits DNS (domain) and DHCP (bootps) so quarantined devices can still resolve names and obtain an address. The route map denies redirect for that traffic (deny 10) and forwards everything else to NAC Edge (permit 20 → set ip next-hop).

Step 4: Choose the Remediation Page Users See

The captive portal displays a remediation page to the user. You choose which page in the matching rule's Show remediation page action (see Rules — Showing a Remediation Page).

Available pages:

  • Block — a hard stop that reads "You are not allowed on this network." Shown automatically if no page is set.

  • MDE required — prompts the user to install the MetaDefender Endpoint agent.

  • Guest, SSO, and SSO and Guest — sign-in options for guest and/or single sign-on.

Info

If a device is placed on the captive portal and no matching rule sets a remediation page, the Block page is shown by default.

Verify the Configuration

  1. Using a test device, connect to the network.

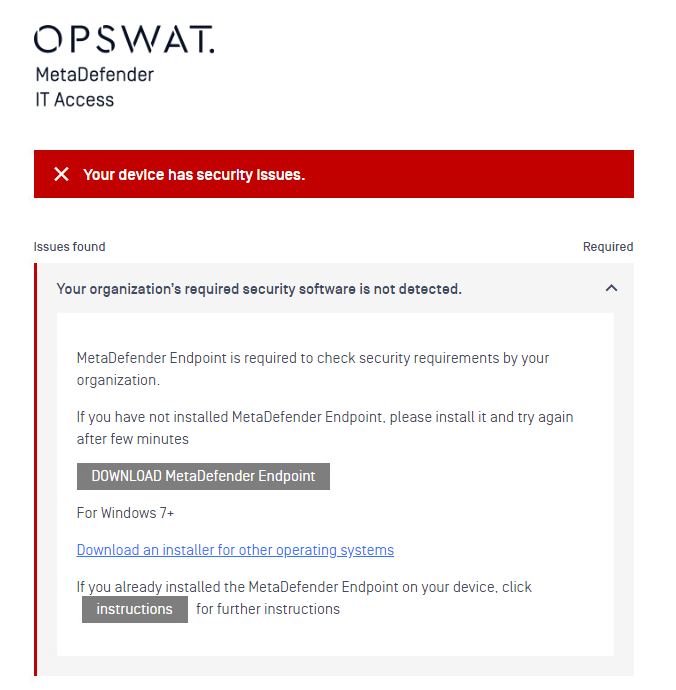

  2. Confirm the browser is redirected to the expected remediation page. For example, if the agent is not installed and the rule shows the MDE required page, the user is prompted to install the agent.

  1. In RADIUS NAC → Sessions, confirm the device shows Applied Access Profile = Captive Portal and the Applied Rule you expect.

  1. Complete the required action (install the agent, sign in, and so on), then confirm the device is re-evaluated and receives its intended access.

Note

Apple devices can use DHCP option 114 on a Windows DHCP server for NAC integration with the Apple Captive Network Assistant (CNA).

Troubleshooting

Device is not redirected to the captive portal

  • Verify the matching rule assigns the Captive Portal access profile, and that no earlier rule matches first — rule order matters.

  • Check the redirect configuration on your vendor (DNAT role, or VLAN plus policy route map).

  • Confirm the set ip next-hop address matches your NAC Edge IP.

The wrong page is shown, or the Block page always appears

  • Check the rule's Show remediation page action. If it isn't set, the Block page is shown by default.

  • Make sure the rule you expect is the first one that matches.

A quarantined device can't get an IP address or resolve DNS

  • Ensure the Non_Redirect ACL permits DHCP (bootps) and DNS (domain), and that ip helper-address points to your DHCP server.

An Apple device doesn't open the portal automatically

  • Use DHCP option 114 (see the note above) so the Apple Captive Network Assistant opens the portal.
